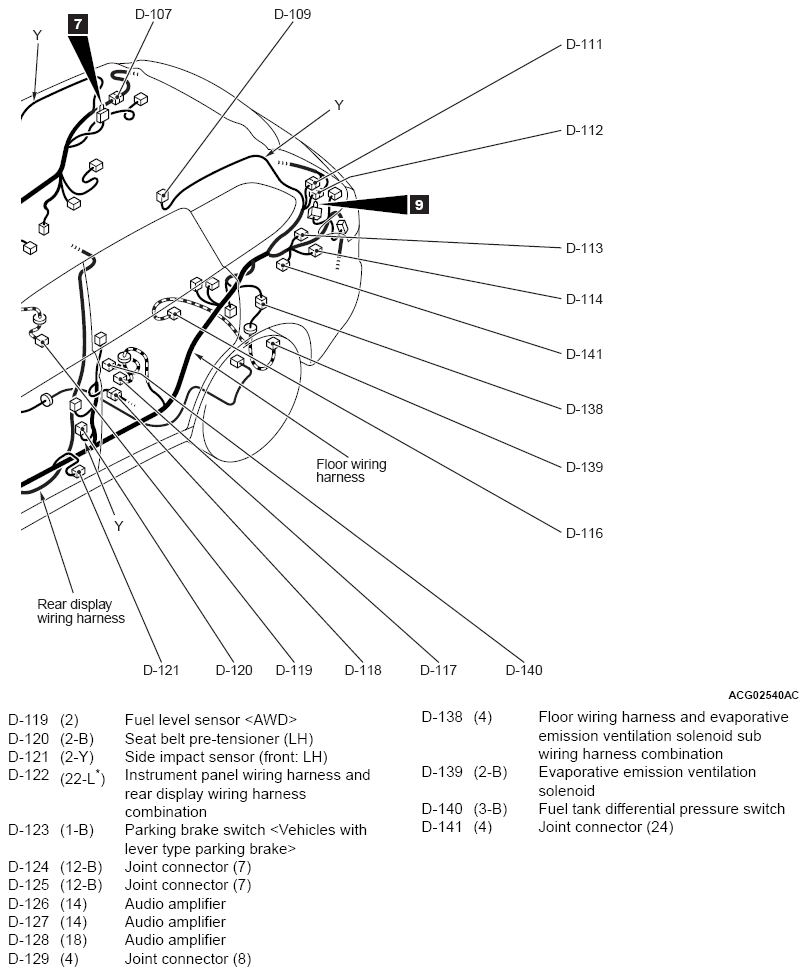

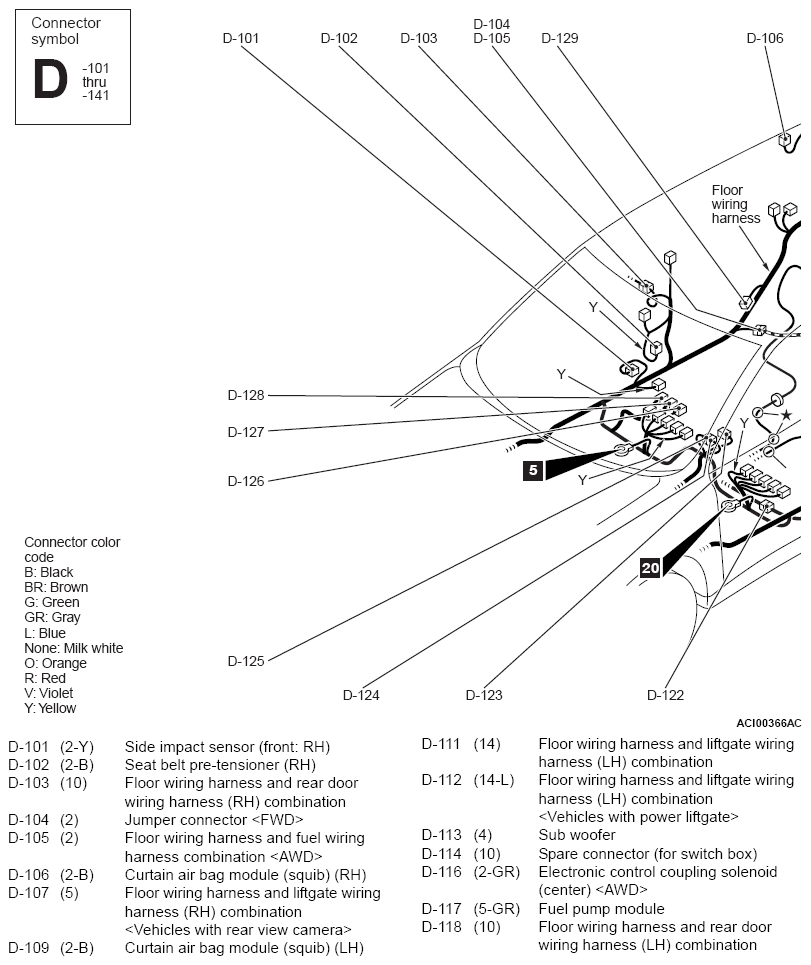

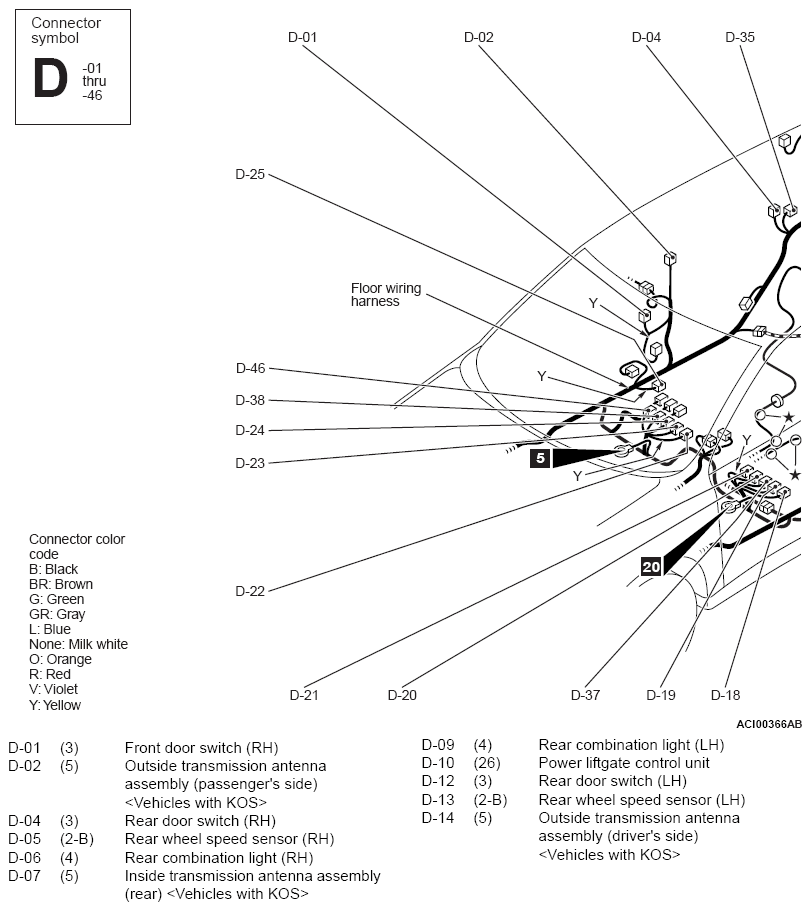

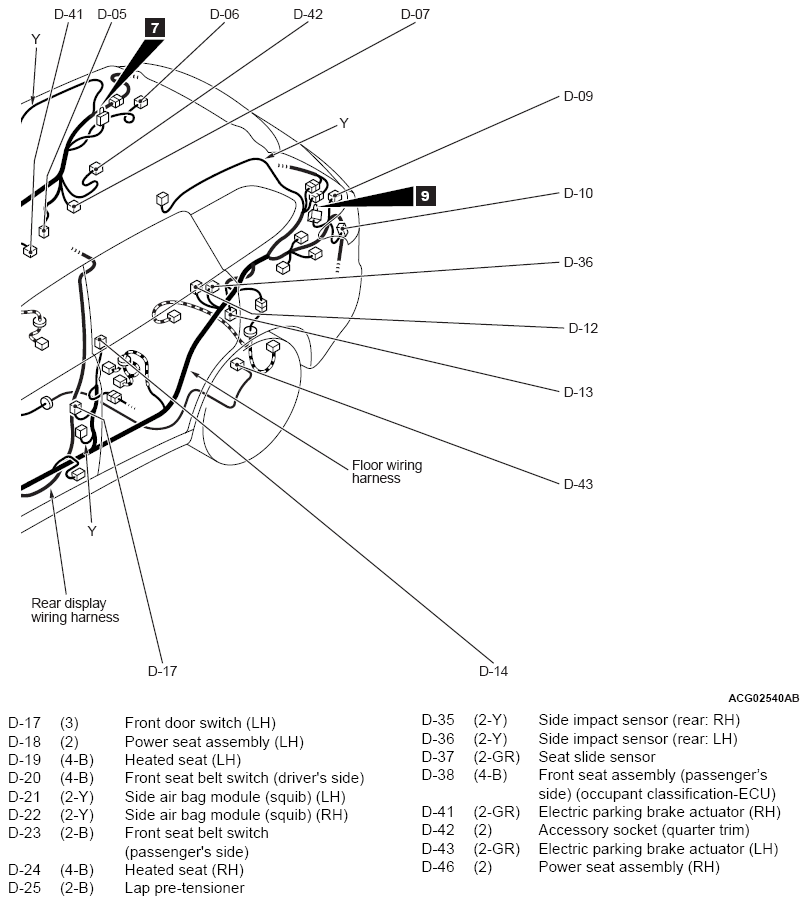

Configuration Diagrams: Floor
NOTE:
The connector color marked by * indicates female side. The male-side connector color is milky white.
