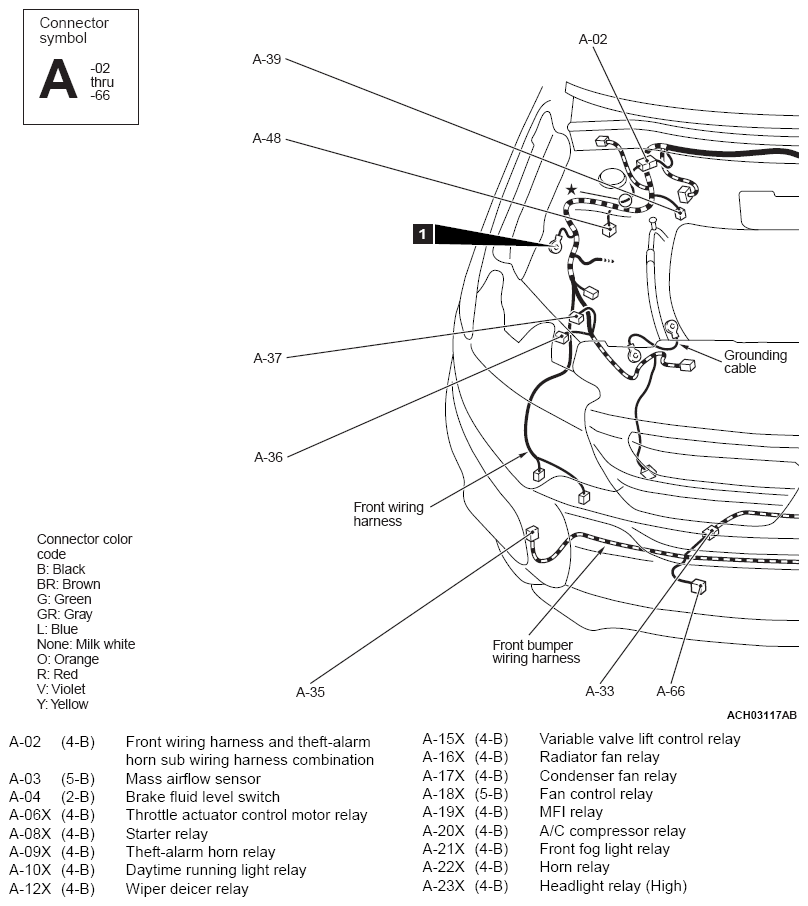

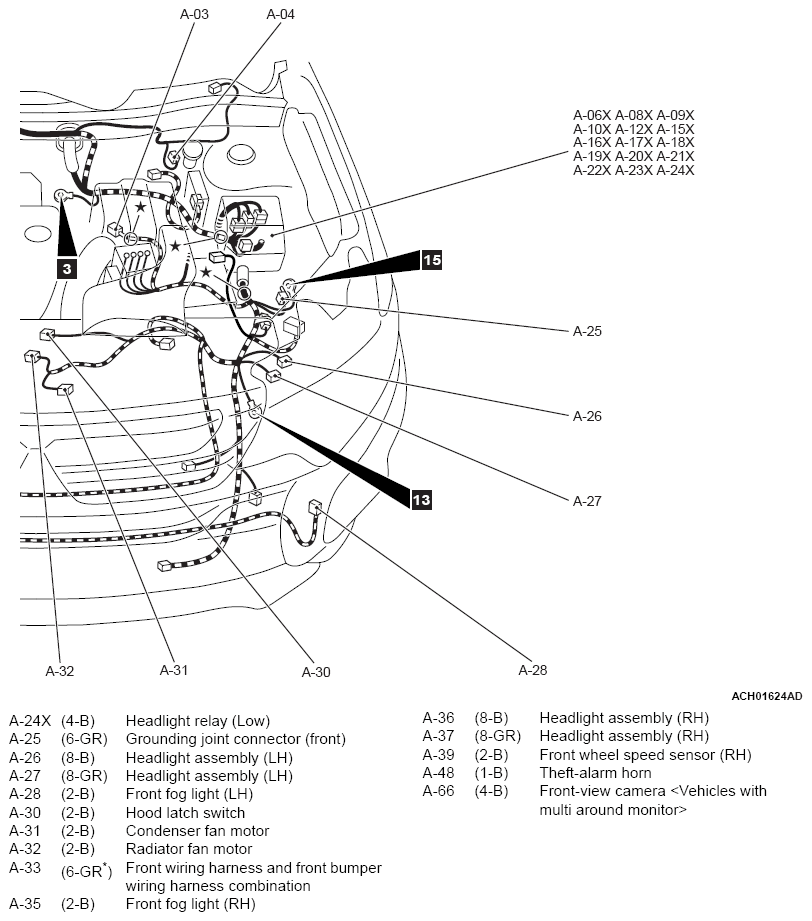

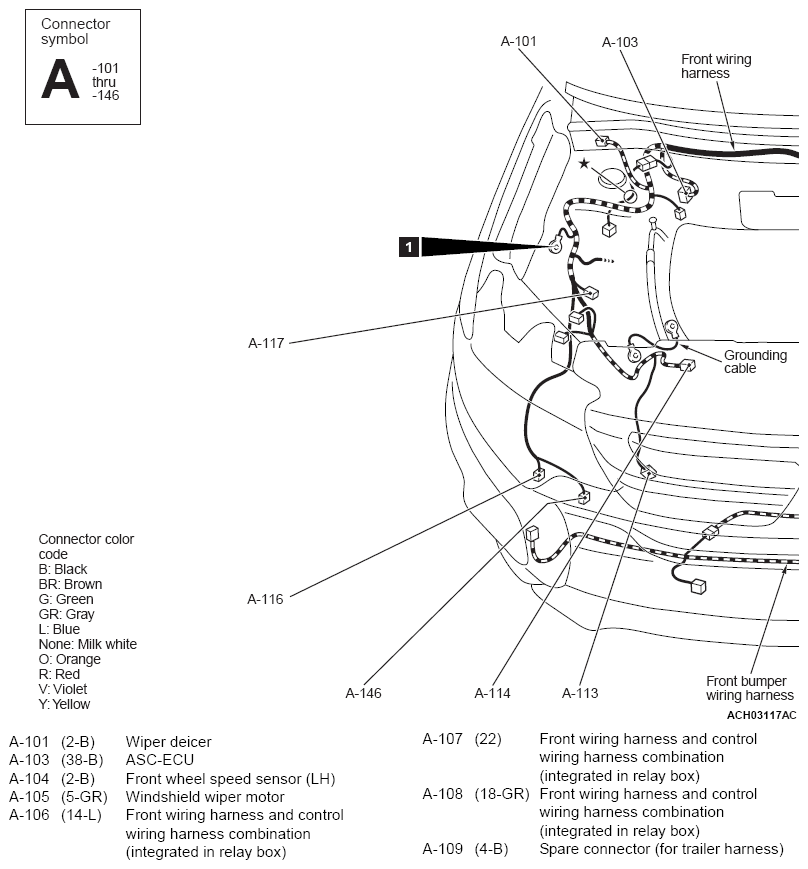

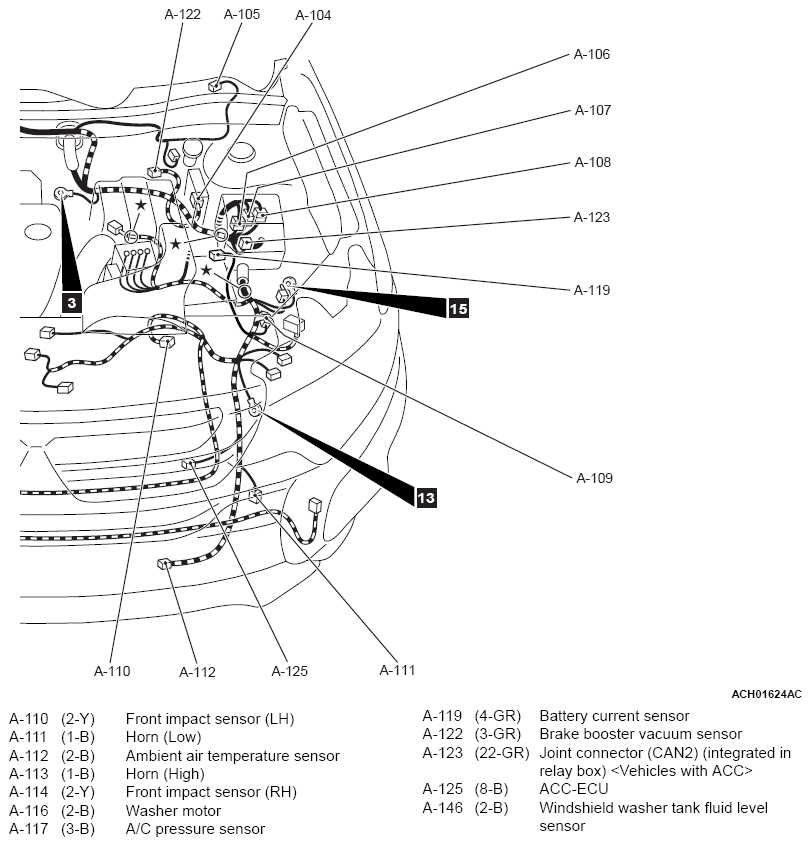

Engine Compartment <2.4L Engine>
Engine Compartment <2.4L Engine>
NOTE:
The connector color marked by * indicates female side. The male-side connector color is black.
