Disassembly And Assembly: Notes

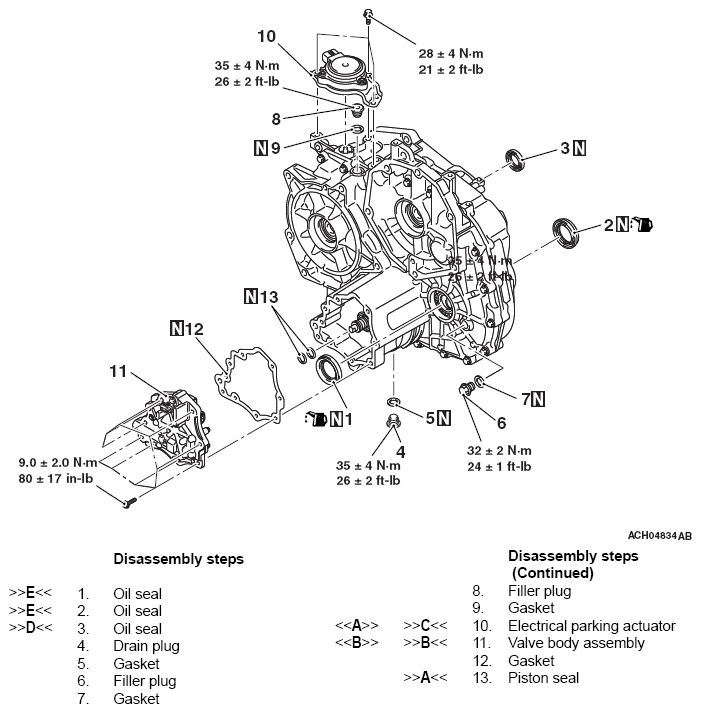

Fig 1: Disassembling/Assembling Front Transaxle Components Location With Torque Specification
G13121487Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:
