Component Locations: Grounding

G13125474

G13125475

NOTE: 1 to 34 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

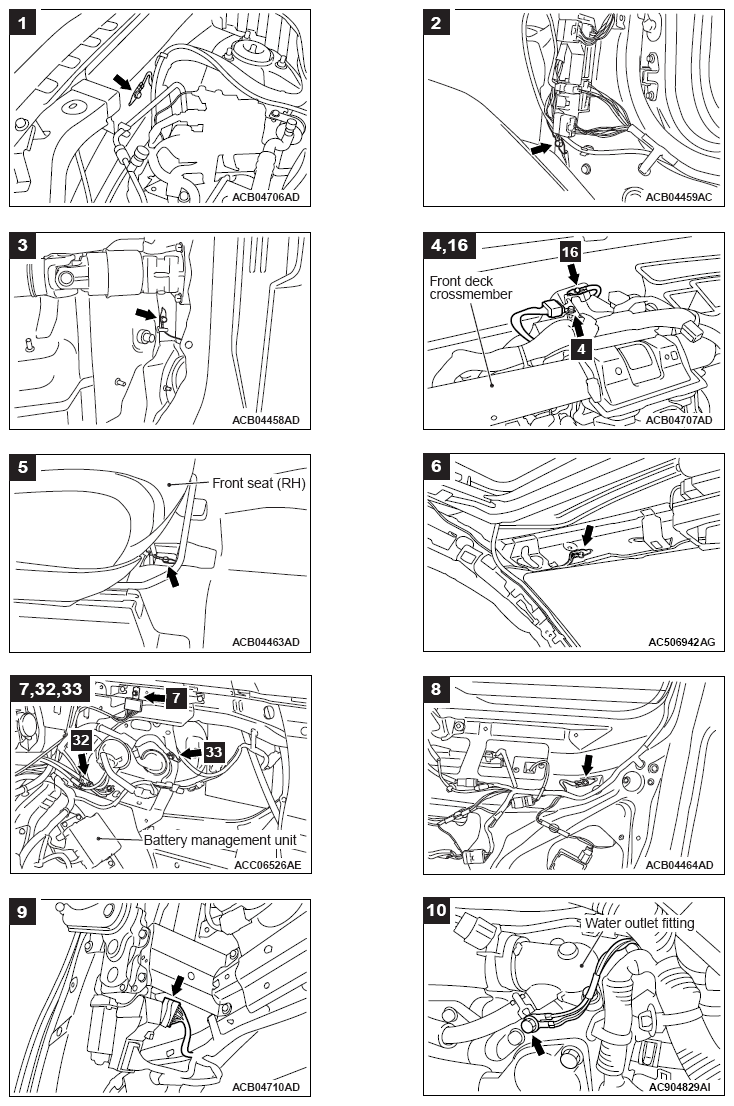

G13125476

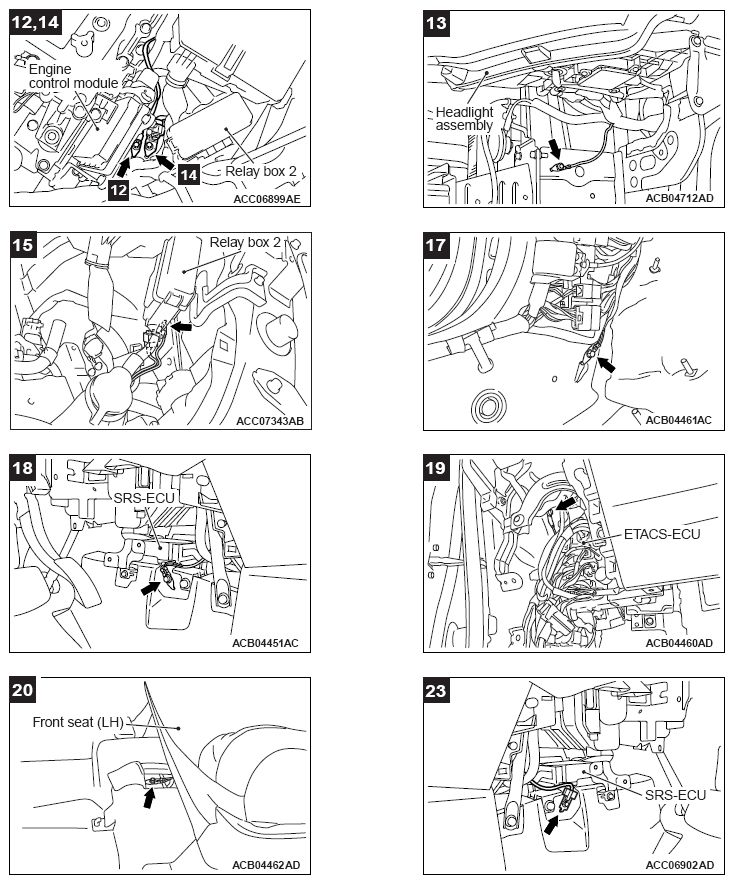

G13125477

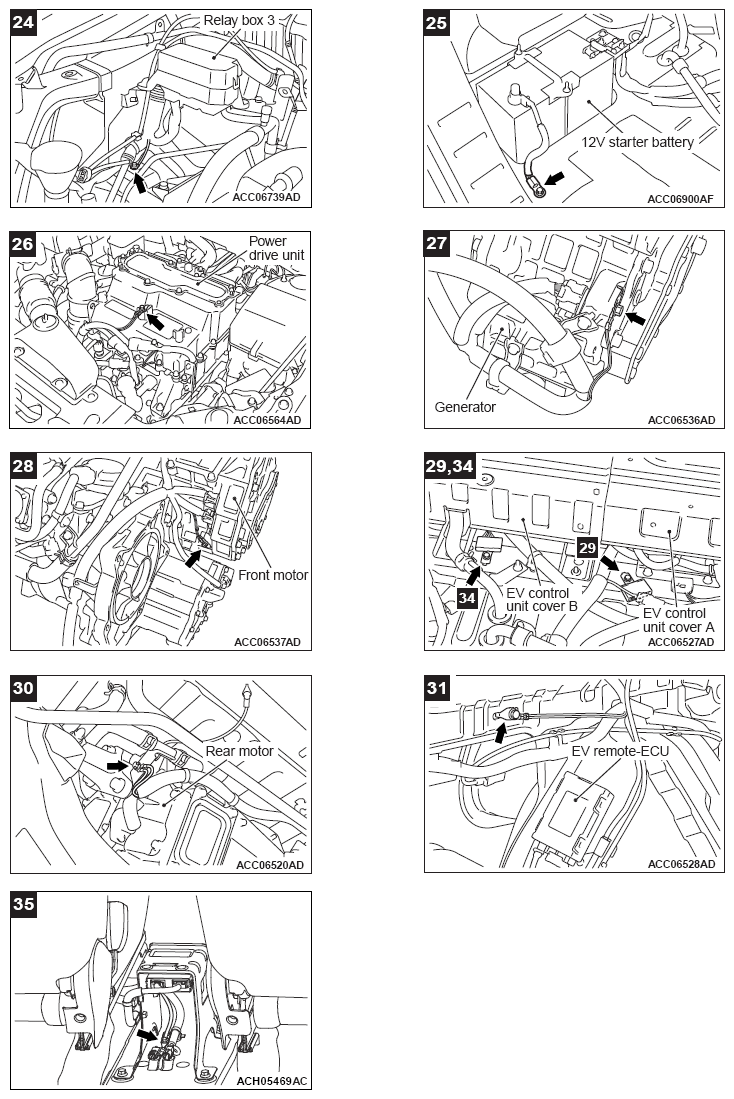

G13125478
