Removal And Installation

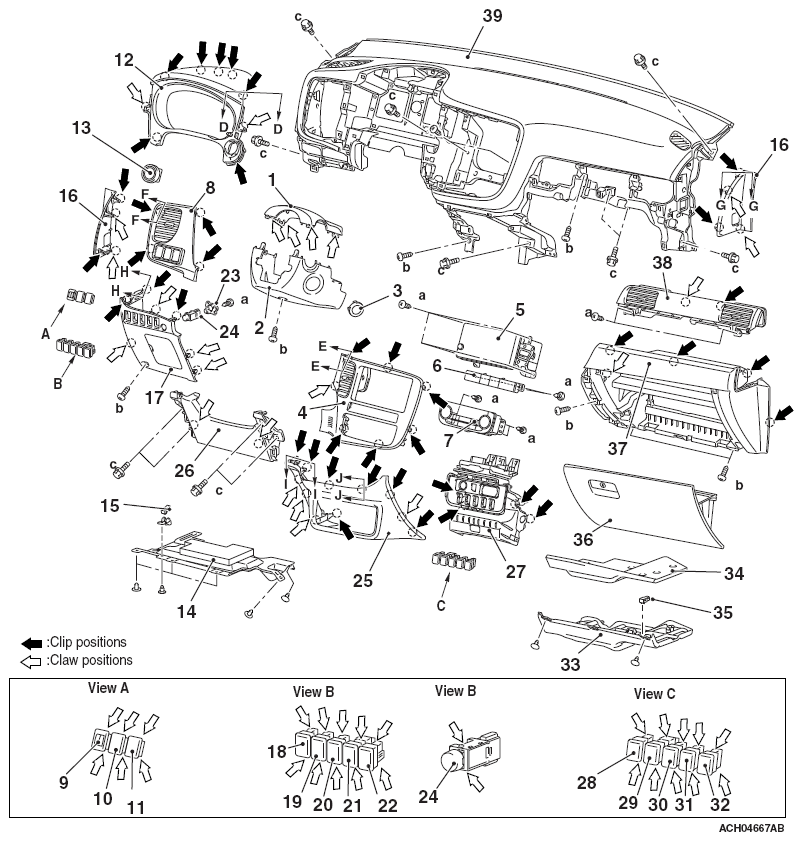

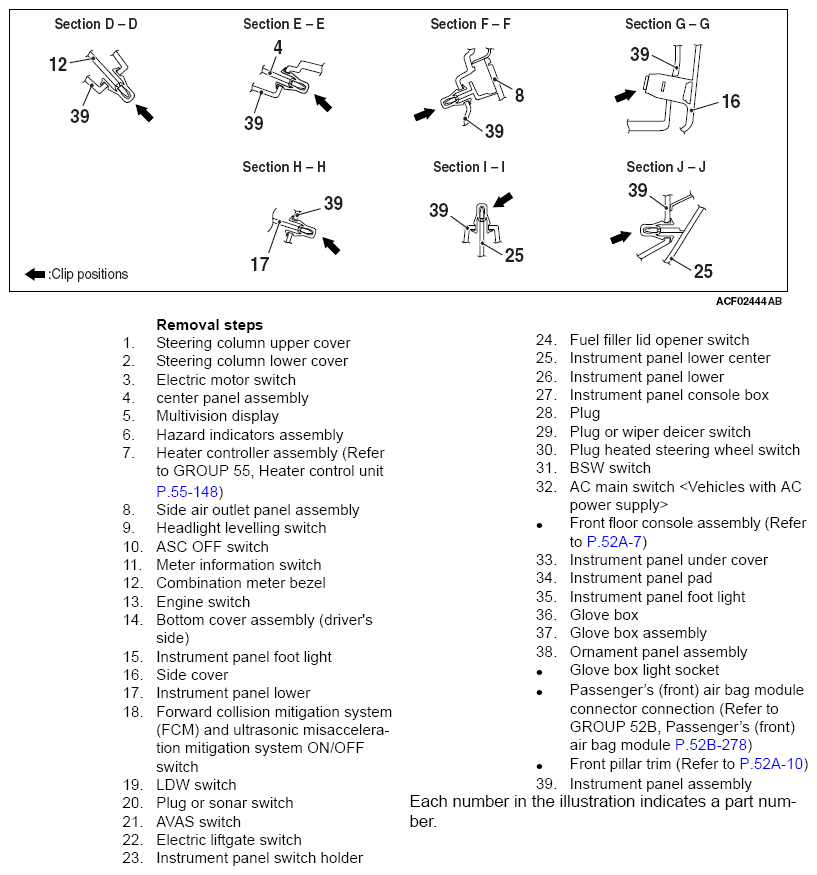

The following bolts and screws are used for installing the instrument panel: The bolts and screws are indicated by symbols in the illustrations in "REMOVAL AND INSTALLATION" and "DISASSEMBLY AND ASSEMBLY" service information.
| Name | Symbol | Size (D x L) mm | Color | Shape |
|---|---|---|---|---|
| Tapping screw | a | 5 x 14 | - | |
| b | 5 x 16 | - | ||
| Bolt with washer | c | 6 x 16 | - |
CAUTION:
- For the removal of the front passenger's air bag module, refer to - SERVICE PRECAUTIONS , Driver's and Front Passenger's Air Bag Module, and Clock Spring DRIVER'S AIR BAG MODULE AND CLOCK SPRING before operation.
- Do not subject SRS-ECU to any shocks when removing or installing the instrument panel.
