Steering Wheel Camera Switch Check

WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Switch Position Tester Connection Resistance
"CAMERA" switch pushed 1 - 2 Approximately 13.0 KΩ

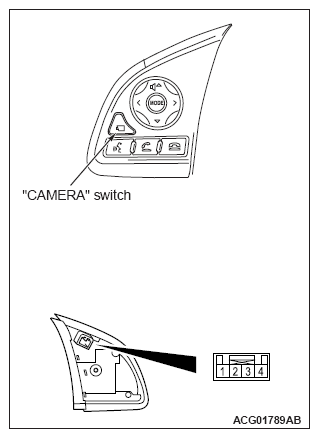

G12128064Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
