Hub Bolt Replacement

WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

MB990767: Front Hub and Flange Yoke Holder
MB991618: Hub Bolt Remover

Remove the front caliper assembly and front brake disc, and retain the front caliper assembly with a wire and the like to prevent from falling (Refer to FRONT AXLE HUB ASSEMBLY ).
Use special tool hub bolt remover (MB991618) to remove the hub bolt.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

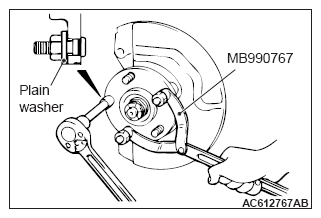

After fixing the hub using special tool front hub and flange yoke holder (MB990767), install the plain washer to the new hub bolt, and tighten the bolt with a nut.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the front brake disc and the front caliper assembly.
Tightening torque: 100 ± 10 N.m (74 ± 7 ft-lb)
