>>A<< Coil Spring Installation
CAUTION:
Make sure that the coil spring is seated properly in the concave groove of the spring pad.

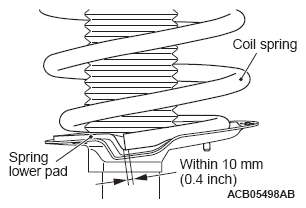

- Align the bottom end of the coil spring with the end of the recess in the spring lower pad.
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|

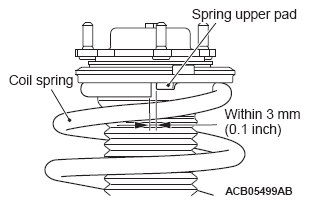

- Align the top end of the coil spring with the end of the lug in the spring upper pad.
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
