Lower Arm Bushing Replacement

Replace the back side bushing according to the following procedure.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

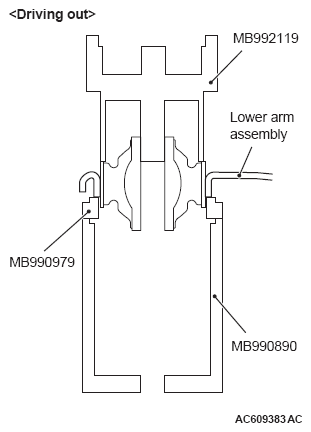

1. Use the following special tools to remove the bushing:
   • Arm bushing remover and installer (MB992119)
   • Ring (MB990979)
   • Rear suspension bushing base (MB990890)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

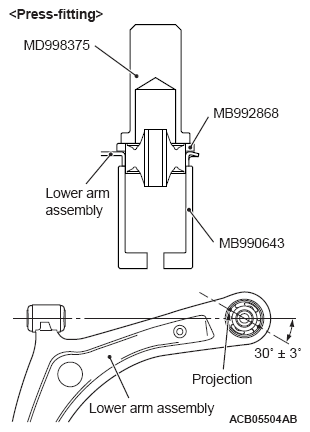

2. Use the following special tools to locate the front suspension lower arm bushing protrusion as shown in the illustration. Press-fit the special tool until it reaches the lower arm assembly.
   • Arm bushing installer (MD998375)
   • Spacer base (MB992868)
   • Suspension bushing base (MB990643)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
