Removal And Installation: Notes

WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Post-installation operation

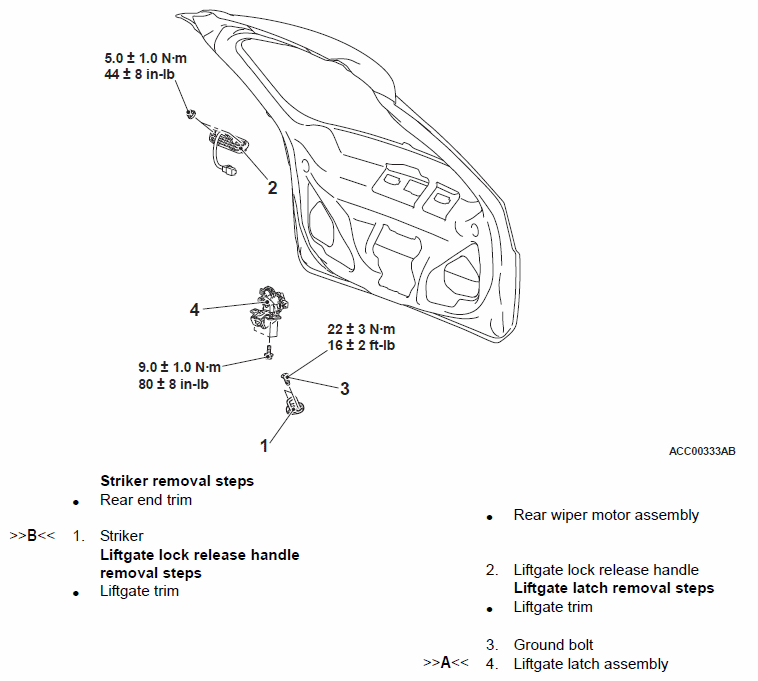

Fig 1: Removing/Installing Liftgate Handle And Latch Components With Torque Specification
G12368062Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
