Removal And Installation: Notes

WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When the hydraulic unit (integrated with ASC-ECU) is replaced, after turning the ignition switch ON or OFF (vehicle information from ETACS-ECU is registered), always carry out the calibration of all sensors at one time. (Refer to ALL SENSOR CALIBRATION (G AND YAW RATE SENSOR, STEERING WHEEL SENSOR, BRAKE FLUID PRESSURE SENSOR) .)

Pre-removal Operation

Brake Fluid Draining.

Post-installation Operation

Brake Fluid Refilling and Air Bleeding (Refer to BLEEDING ).
Hydraulic Unit Check (Refer to HYDRAULIC UNIT (HU) CHECK ).

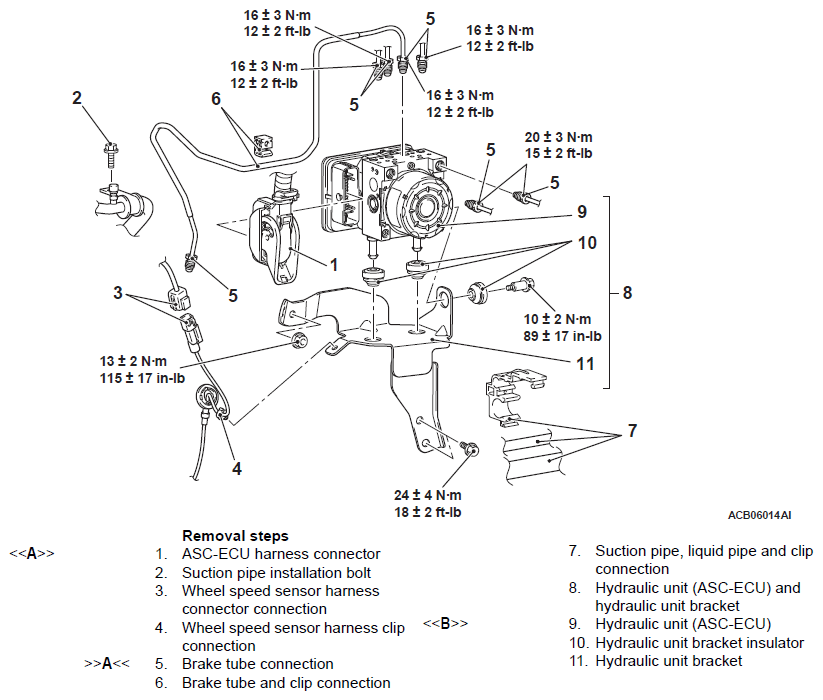

Fig 1: Removing/Installing Hydraulic Unit Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
