Removal And Installation: Notes

WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Post-installation operation

<Front door>

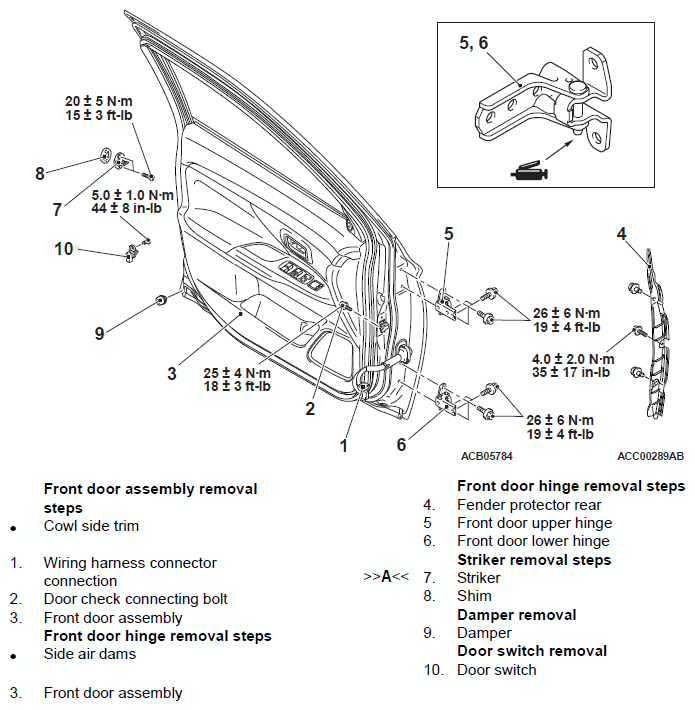

Fig 1: Removing/Installing Front Door Assembly Components With Torque Specification
G12368020Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

<Rear door>

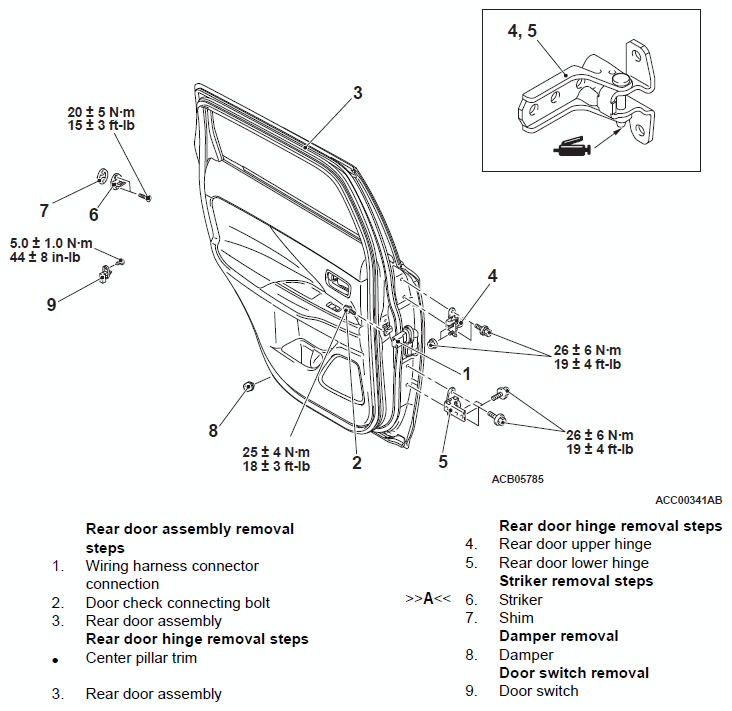

Fig 2: Removing/Installing Rear Door Assembly Components With Torque Specification
G12368021Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
