Removal And Installation: Notes

WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Pre-removal and Post-installation operation

Engine Room Under Cover Removal and Installation (Refer to REMOVAL AND INSTALLATION .)
Transfer Oil Draining and Filling (Refer to TRANSFER OIL CHANGE <AWD> <CVT>, TRANSFER OIL CHANGE <A/T>.)

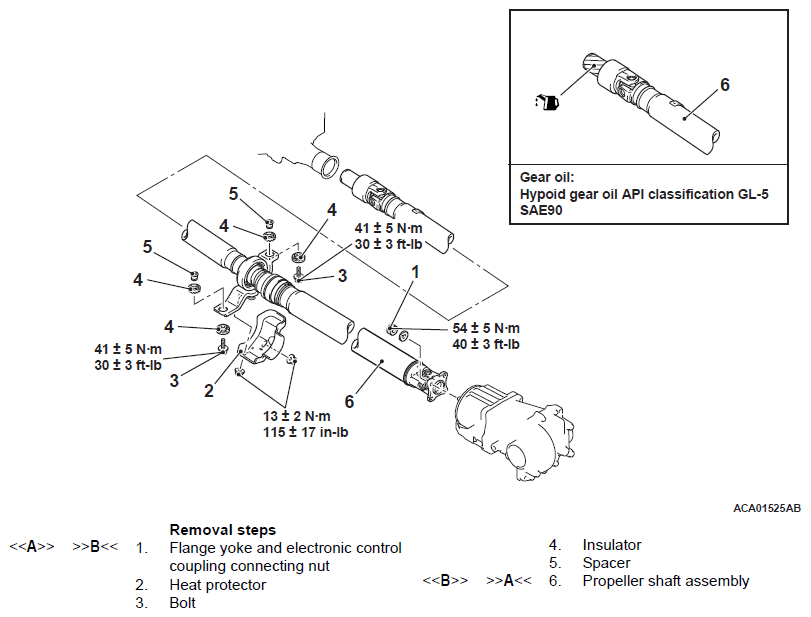

Fig 1: Removing/Installing Propeller Shaft Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MB991193: Plug
