Home >> Mitsubishi >> 2019 >> Outlander LE, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Configuration Diagrams >> Dash Panel

Dash Panel

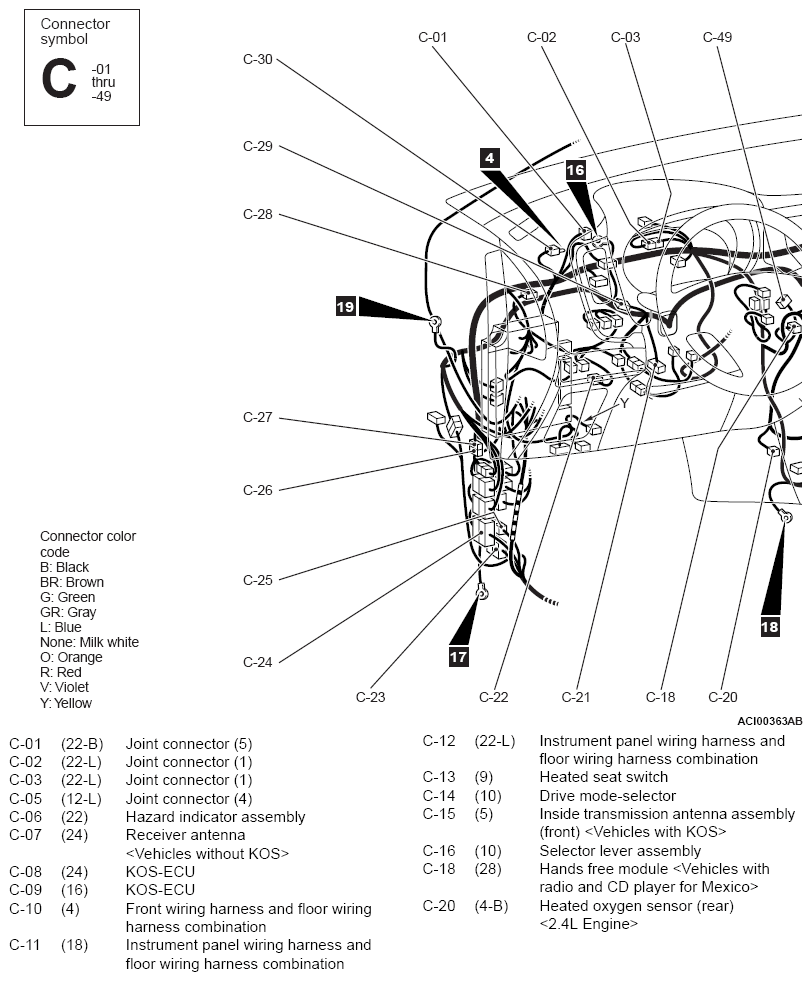

G13091481

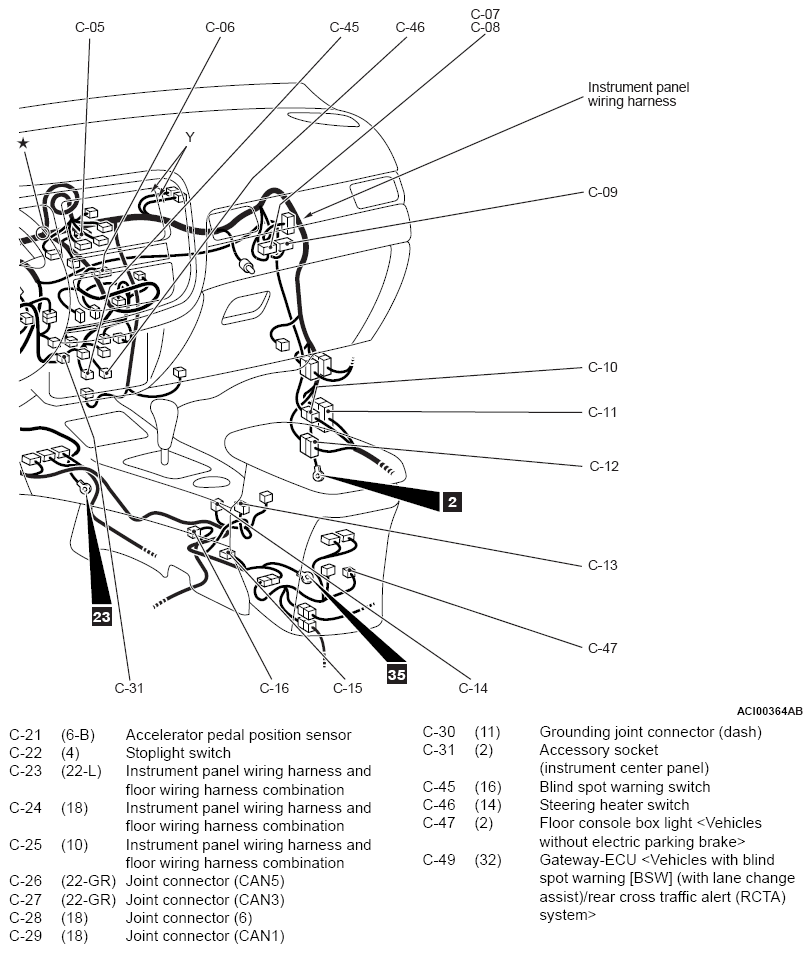

G13091482

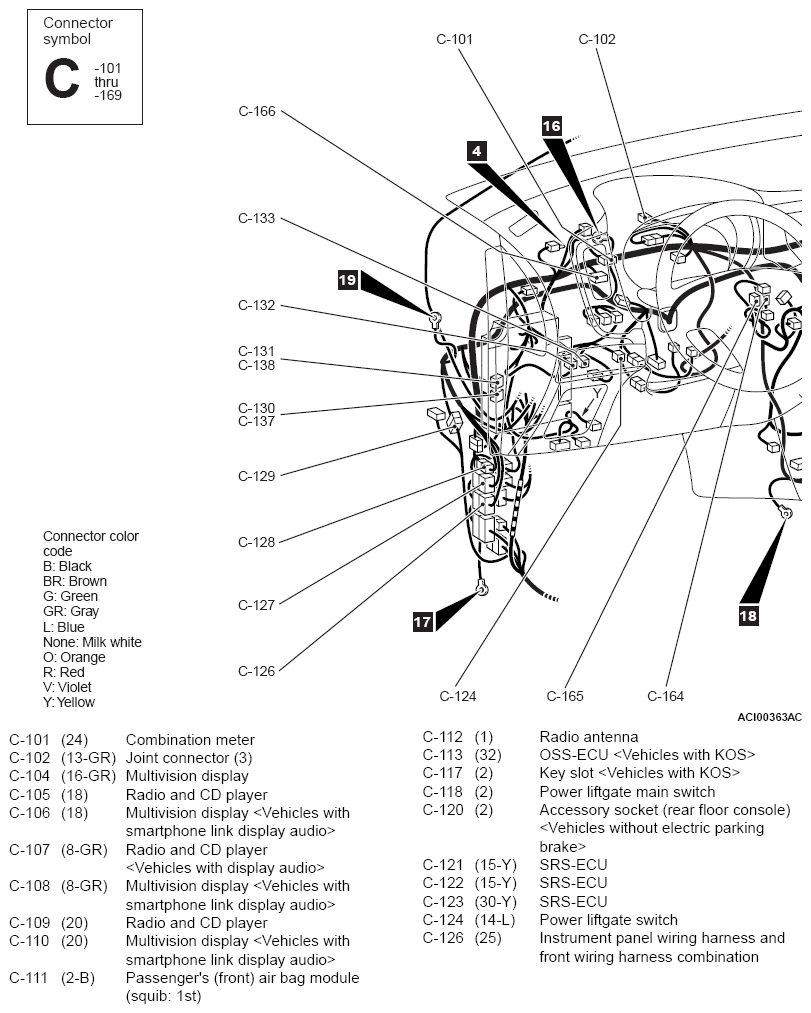

G13091483

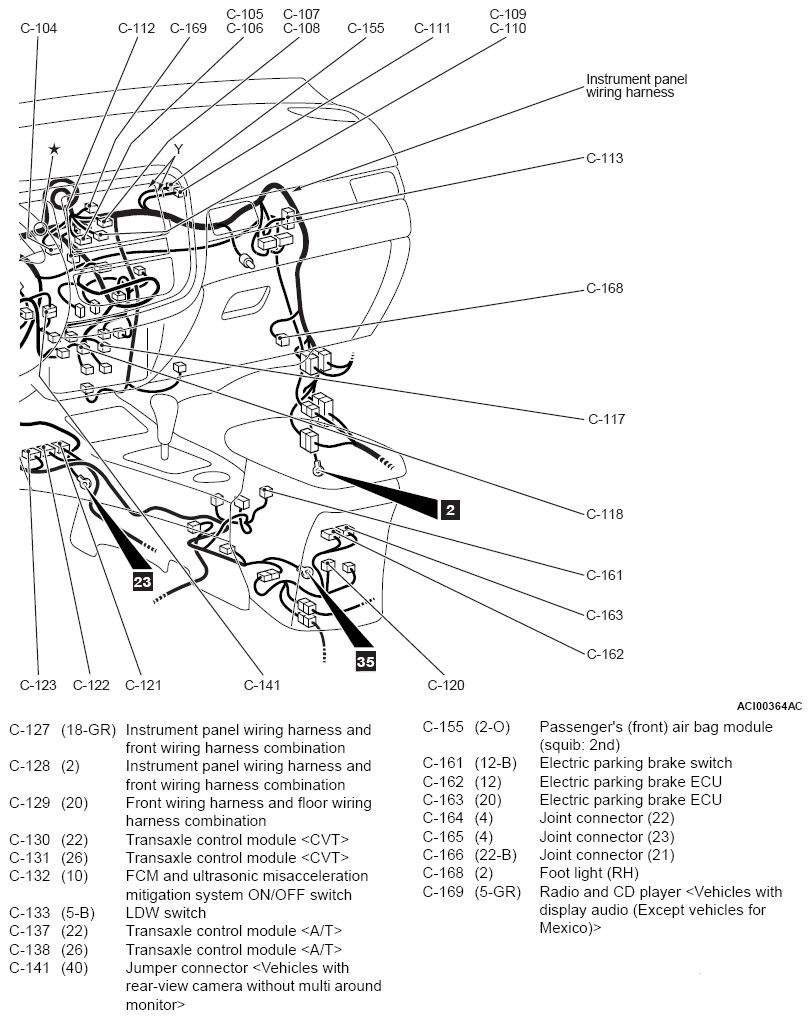

G13091484

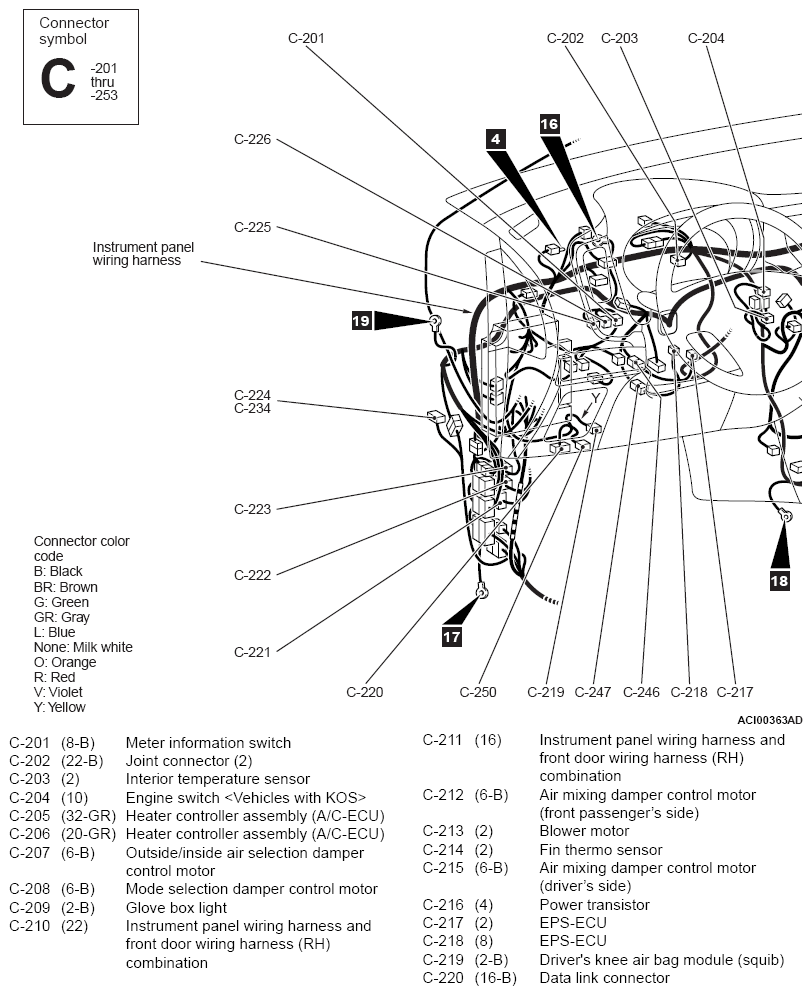

G13091485

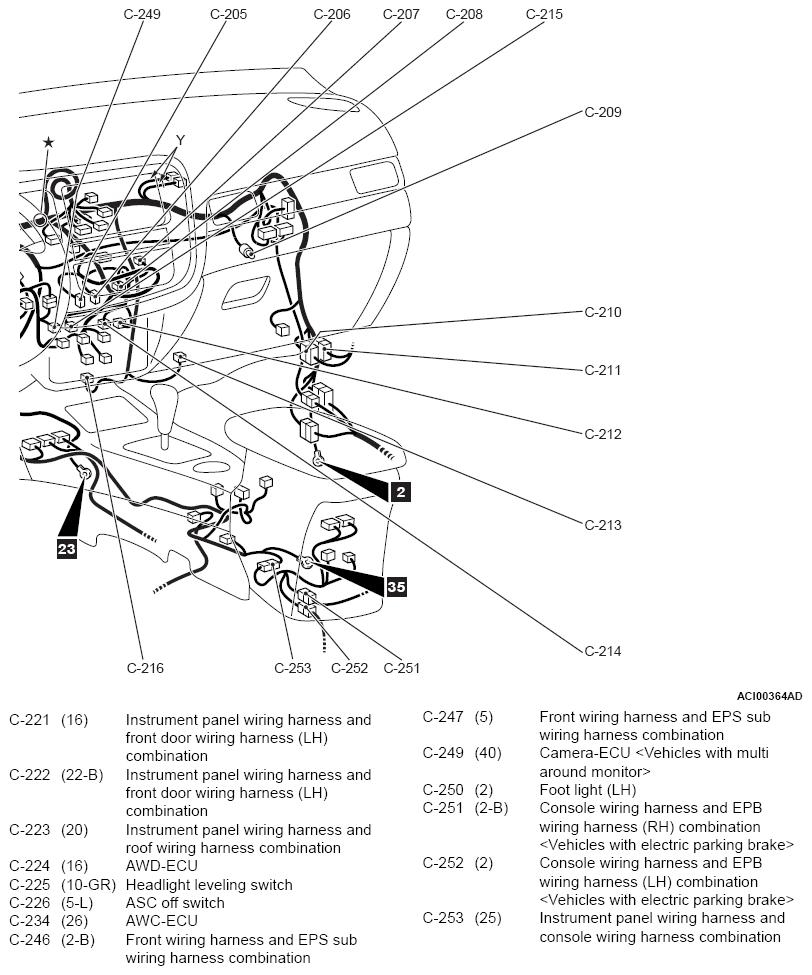

G13091486

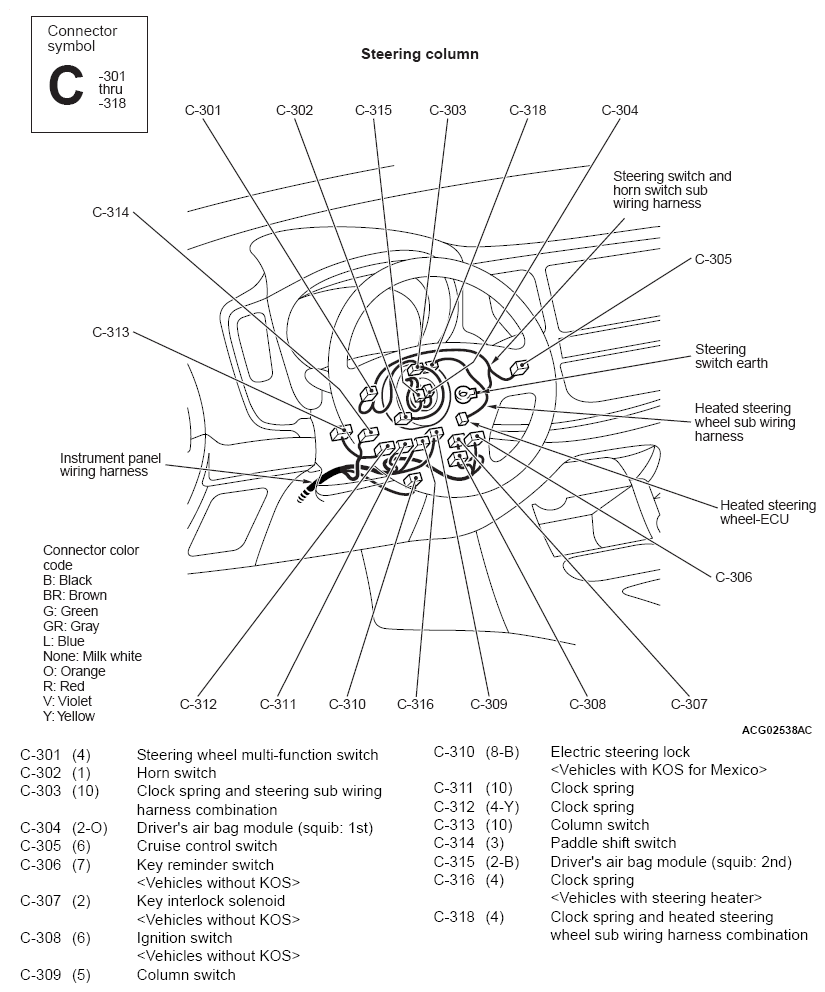

G13091487

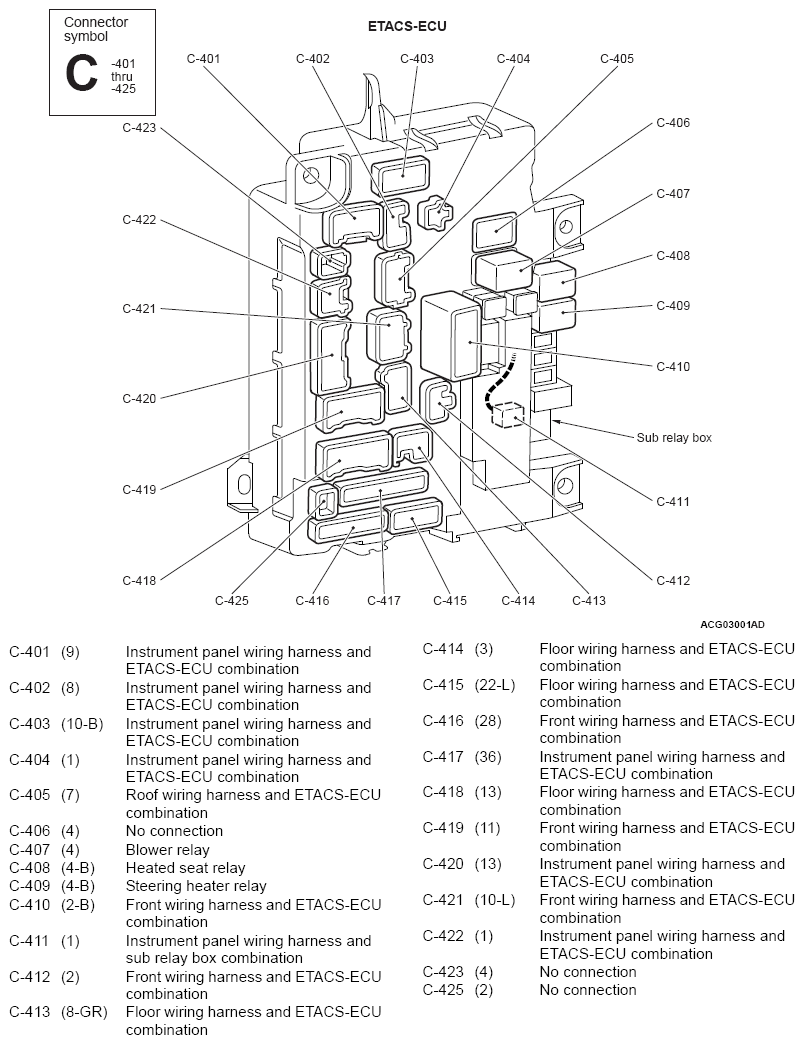

G13091488
