Home >> Mitsubishi >> 2019 >> Outlander LE, AWD >> Repair and Diagnosis (Single Page) >> Engine Performance >> Ignition System >> Engine Overhaul - 2.4L >> Ignition System >> Removal And Installation >> Notes

Removal And Installation: Notes

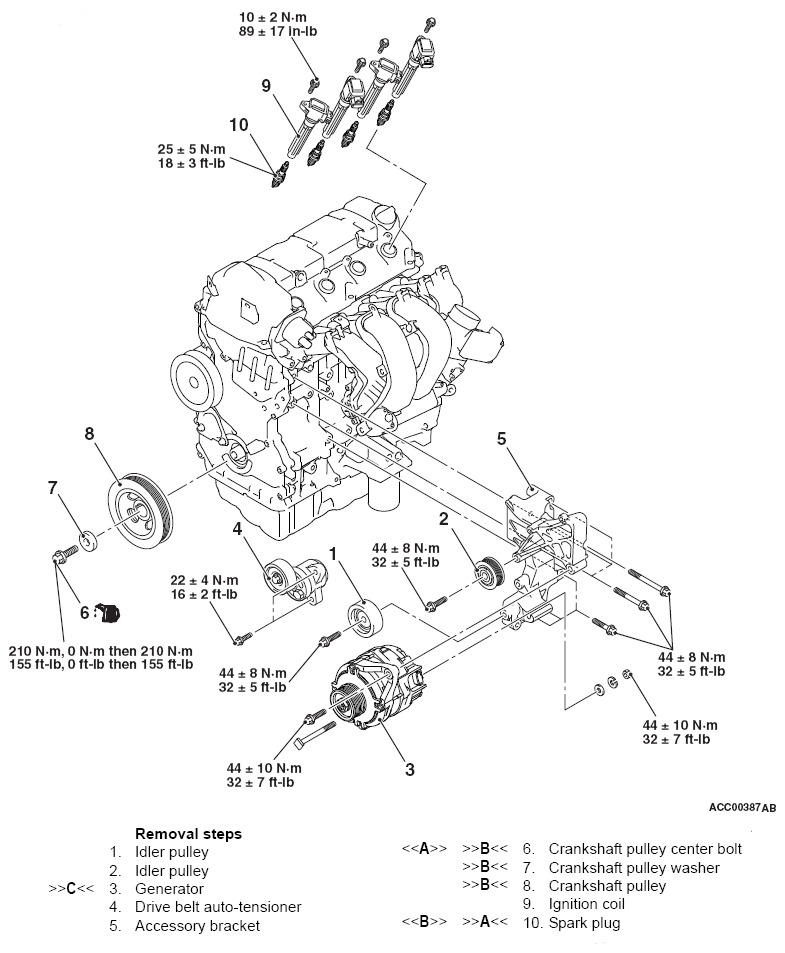

Fig 1: Removing/Installing Generator And Ignition System Components Location With Torque Specification
G13083743Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
