Removal And Installation

Pre-removal and post-installation operation

• Transmission range switch and control cable adjustment check (Refer to TRANSMISSION RANGE SWITCH AND CONTROL CABLE ADJUSTMENT .)
• Selector lever operation check (Refer to SELECTOR LEVER OPERATION CHECK .)

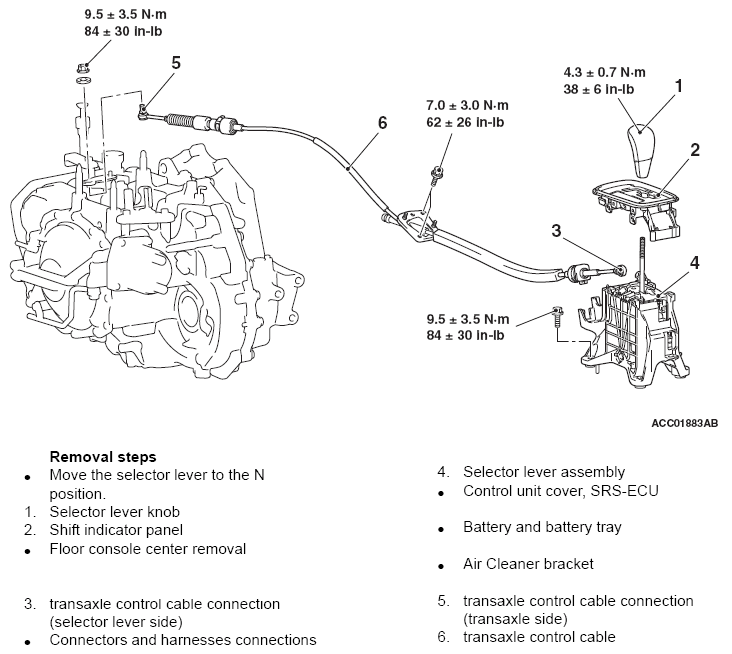

Fig 1: Removing/Installing Transaxle Control Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
