Removal And Installation: Notes

Pre-removal operation

Engine Room Under Cover A and Side Cover Removal.
Transmission Fluid Draining (Refer to TRANSMISSION FLUID CHANGE ).
Engine Coolant Draining (Refer to - ON-VEHICLE SERVICE ).
Air Cleaner Bracket Removal (Refer to - AIR CLEANER ).
Battery and Battery Tray Removal.
ECM Removal (Refer to - ENGINE CONTROL MODULE ).
Driveshaft Removal (Refer to - DRIVESHAFT ASSEMBLY ).

Post-installation operation

Driveshaft Installation (Refer to - DRIVESHAFT ASSEMBLY ).
ECM installation (Refer to - ENGINE CONTROL MODULE ).
Battery and battery tray installation.
Air Cleaner Assembly Installation (Refer to - AIR CLEANER ).
Engine Coolant Refilling (Refer to - ON-VEHICLE SERVICE ).
Transmission Fluid Refilling (Refer to TRANSMISSION FLUID CHANGE ).
Engine Room Under Cover A and Side Cover Installation.

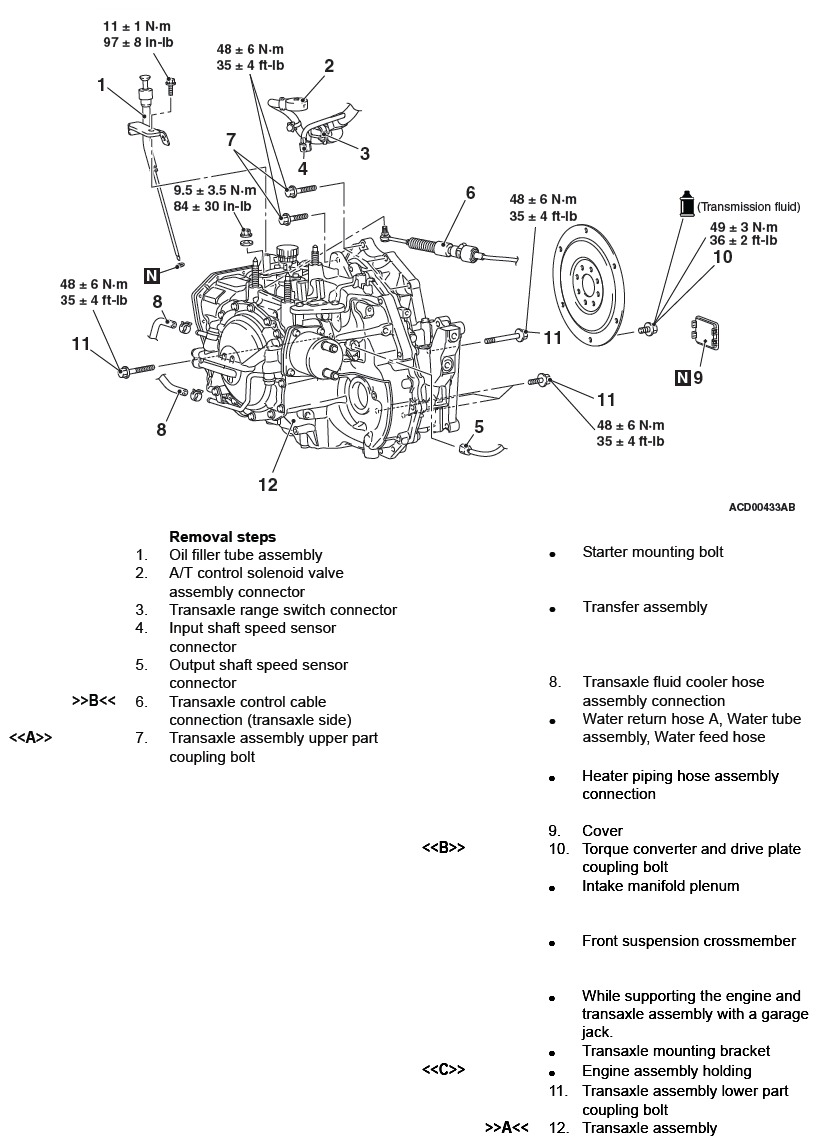

Fig 1: Removing/Installing Transaxle Assembly Components Location With Torque Specification

G13089194

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991454: Engine Hanger Balancer
MB991527: Engine Hanger
MB991895: Engine Hanger
MB991928: Engine Hanger
MB991932: Foot
MB992208: Engine hanger plate A
MB992906: Engine hanger attachment
