A/T Control Component Layout
| Name | Symbol |
|---|---|
| A/T control relay | B |
| A/T control solenoid valve assembly connector | E |
| AWC-ECU <Vehicles with S-AWC> | F |
| Data link connector | H |
| Input shaft speed sensor | C |
| Output shaft speed sensor | A |
| Paddle shift switch | G |
| Selector lever assembly (incorporating shift lock solenoid) | I |
| Transaxle control module (TCM) | F |
| Transmission range switch | D |
| Name | Symbol |
|---|---|

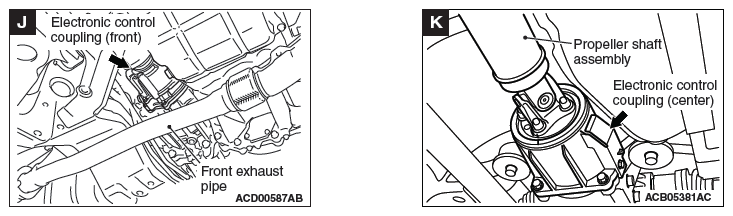

| Electronic control coupling (front) <Vehicles with S-AWC> | J |
| Electronic control coupling (center) <Vehicles with S-AWC> | K |
