Removal And Installation: Notes

WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Pre-removal Operation

Radiator Grill Removal (Refer to REMOVAL AND INSTALLATION .)
Front Bumper Molding Removal (Refer to REMOVAL AND INSTALLATION .)
Engine Room Under Cover Front A Removal (Refer to REMOVAL AND INSTALLATION .)
Front Wiring Harness and Front Bumper Wiring Harness Combination

Post-installation Operation

Front Wring Harness and Front Bumper Wring Harness Combination
Engine Room Under Cover Front A Installation (Refer to REMOVAL AND INSTALLATION .)
Front Bumper Molding Installation (Refer to REMOVAL AND INSTALLATION .)
Radiator Grill Installation (Refer to REMOVAL AND INSTALLATION .)
Front Fog Light Aiming Adjustment (Refer to FRONT FOG LIGHT AIMING .)

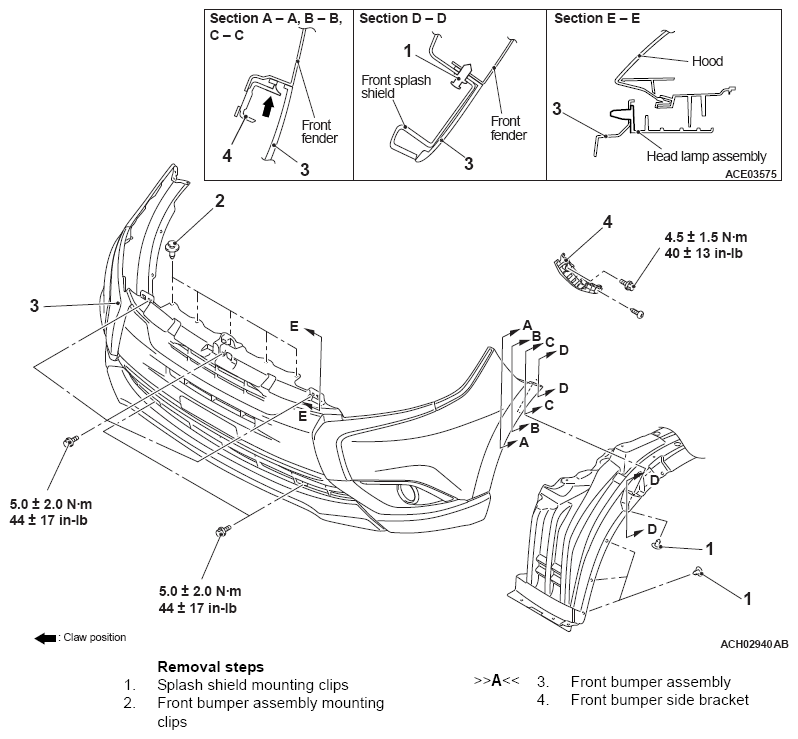

Fig 1: Removing/Installing Front Bumper Assembly Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
