Mitsubishi
>>
2019
>>
Outlander ES, AWD
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior
>>
Seat Assembly
>>
Third Seat Assembly
>>
Removal And Installation
Removal And Installation

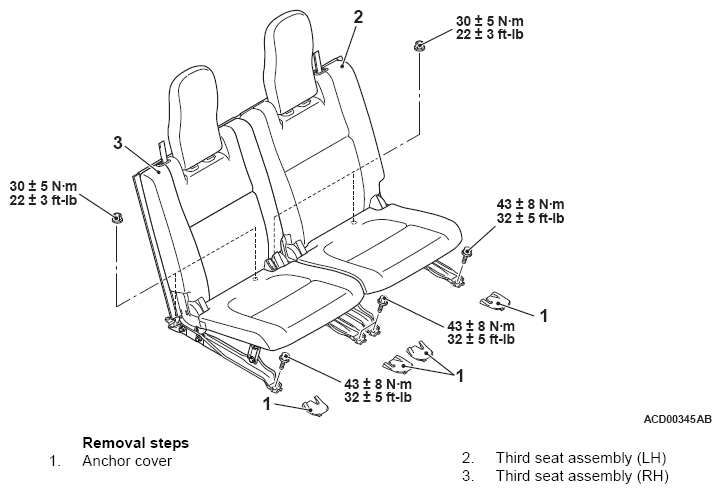

Fig 1: Removing/Installing Third Seat Assembly Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
