Home
>>
Mitsubishi
>>
2019
>>
Outlander ES, AWD
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior
>>
Seat Assembly
>>
Third Seat Assembly
>>
Disassembly And Reassembly
Disassembly And Reassembly

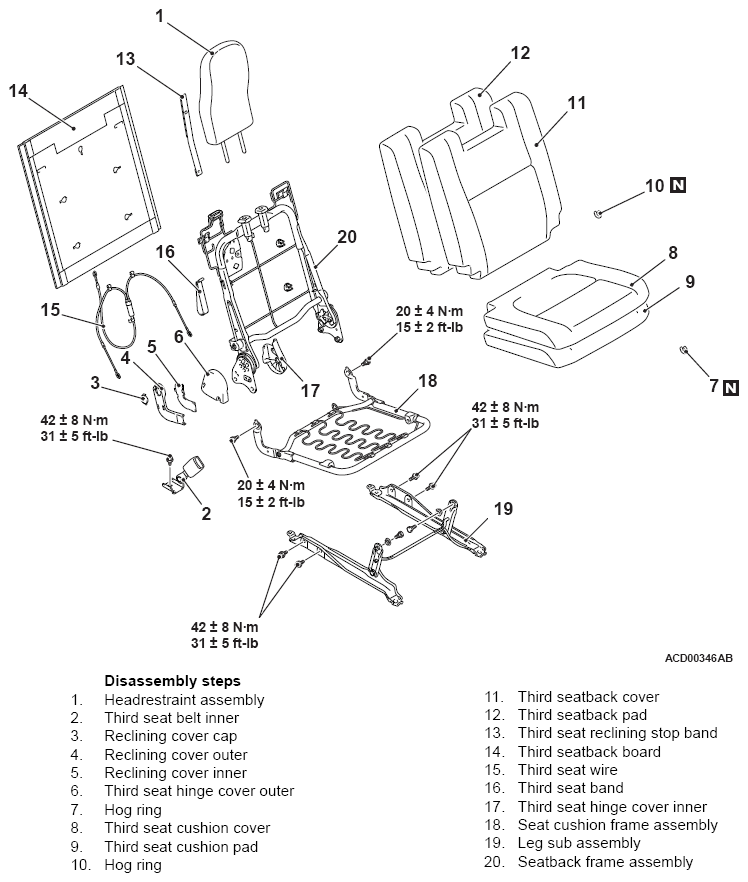

Fig 1: Disassembling/Assembling Third Seat Assembly Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
