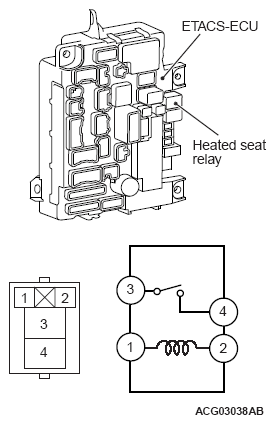

Heated Seat Relay Continuity Check

Battery voltage Terminal number Normal value
At no energization 3 -4 No continuity
At energization (terminal No. 2 (+) - terminal No. 1 (-)) Continuity exists (2 Ω or less).
G13090166
