Screen Transition
WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

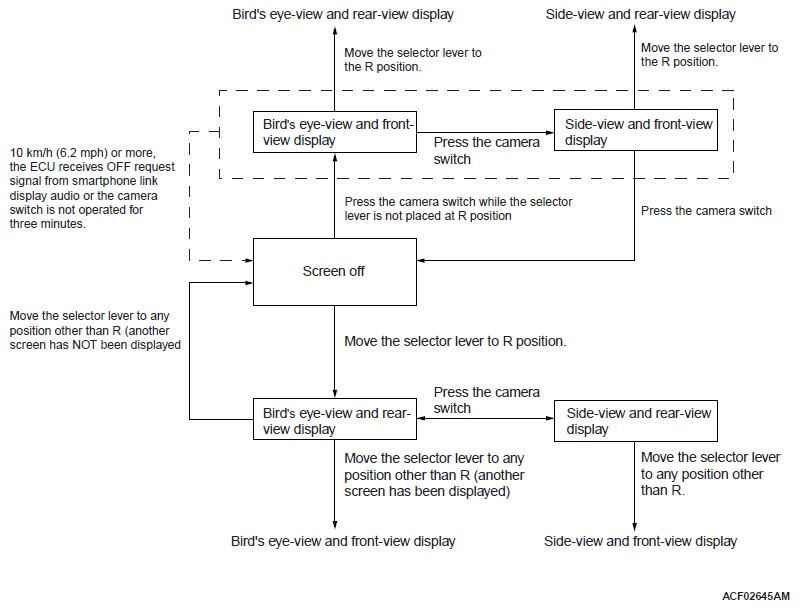

When the ignition switch is in the ON position, the screen switches as shown in illustration below according to the operation of the camera switch, selector lever, and the vehicle speed signal.
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
The vehicle speed is less than 10 km/h (6.2 mph).
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
