DISASSEMBLY AND REASSEMBLY <2.4L Engine>: Notes

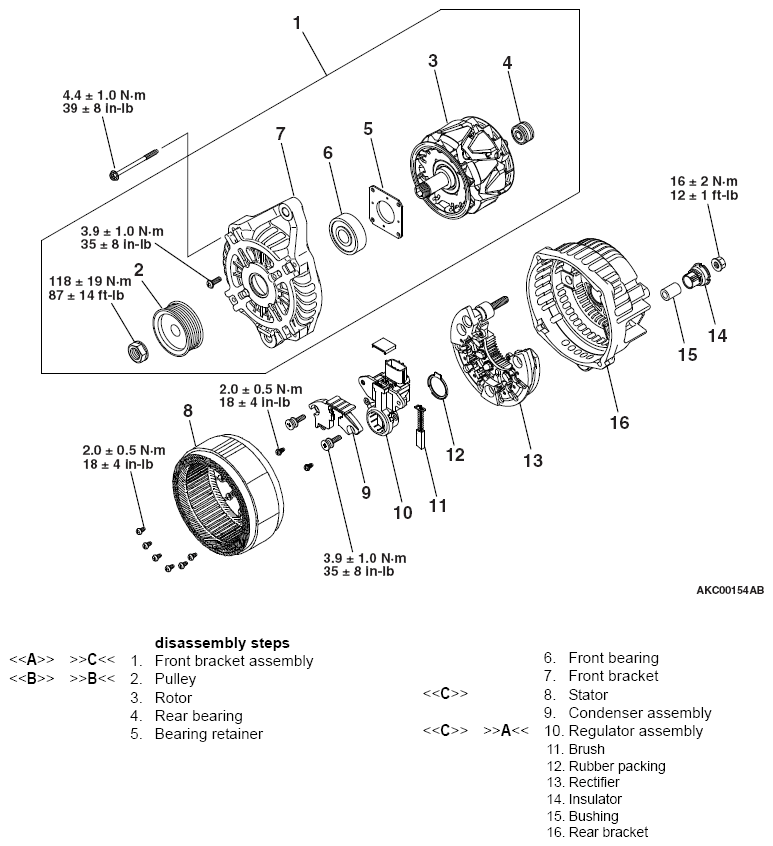

Fig 1: Disassembling/Reassembling Generator Assembly Components Location With Torque Specification (2.4 L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
