Removal And Installation

CAUTION:

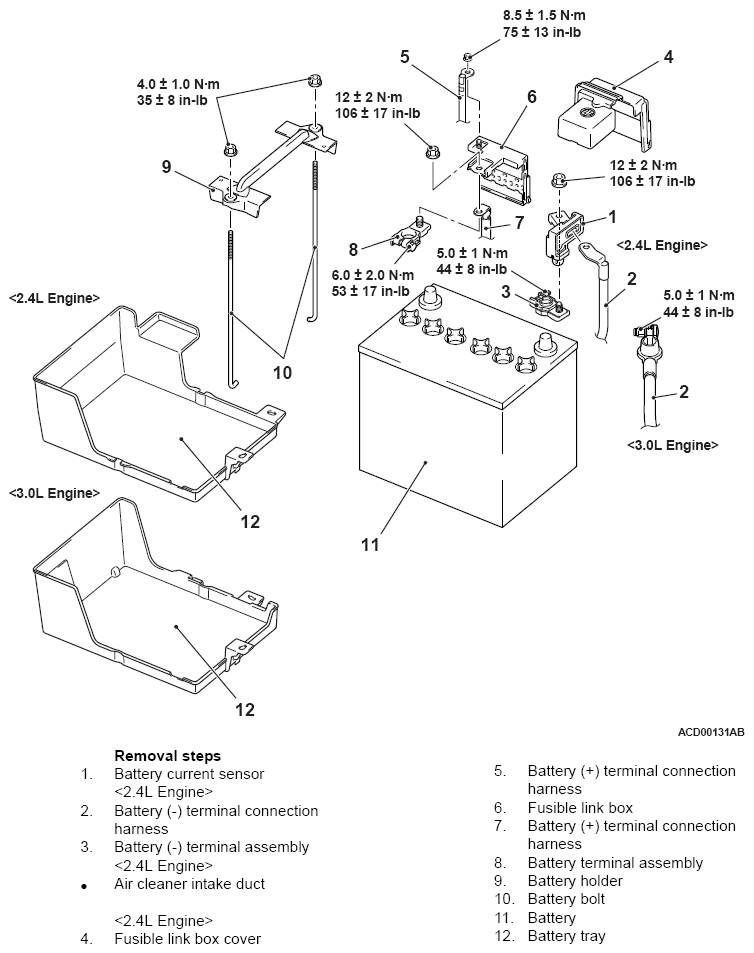

Fig 1: Removing/Installing Battery Components With Torque Specification
G13090595Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
