Removal And Installation

Post-installation Operation

• Refer to LEARNING PROCEDURES OF POWER WINDOW FULLY CLOSED POSITION <Vehicles with safety system (driver's side door)> .

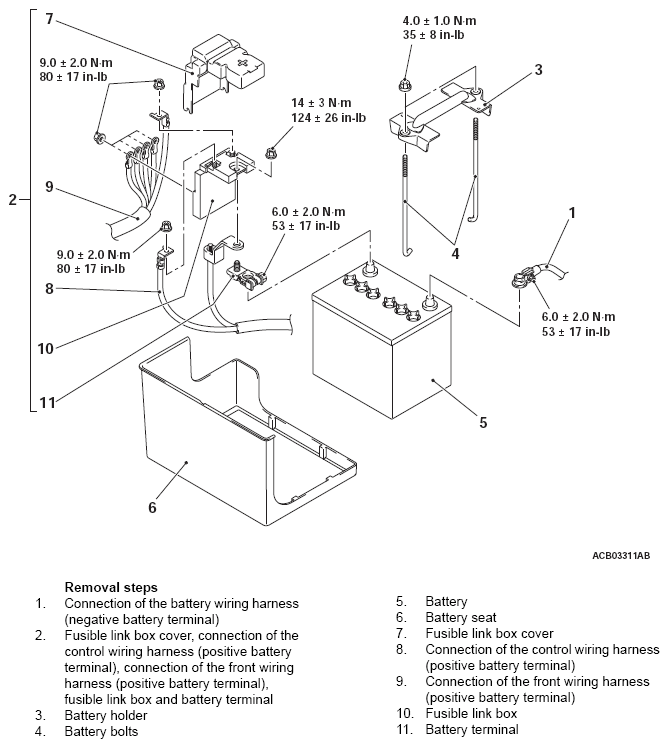

Fig 1: Removing/Installing Battery Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
