Engine And Transaxle

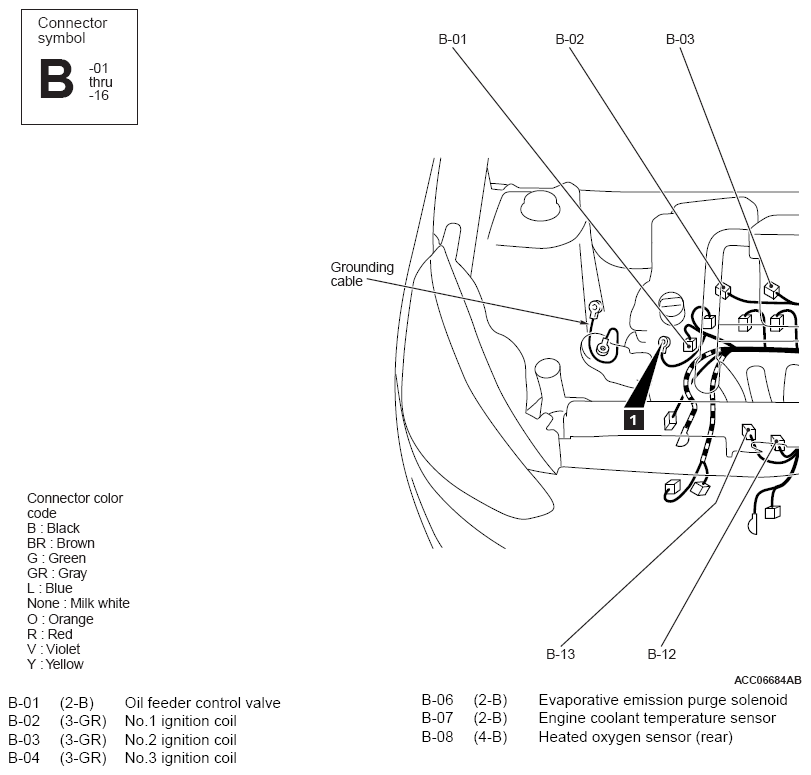

G12682526Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

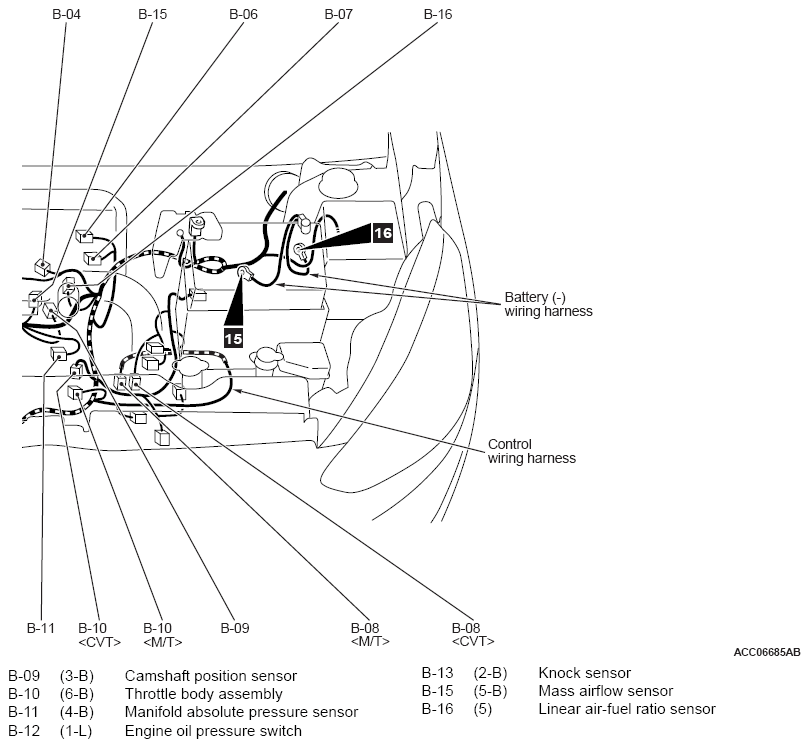

G12682527Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

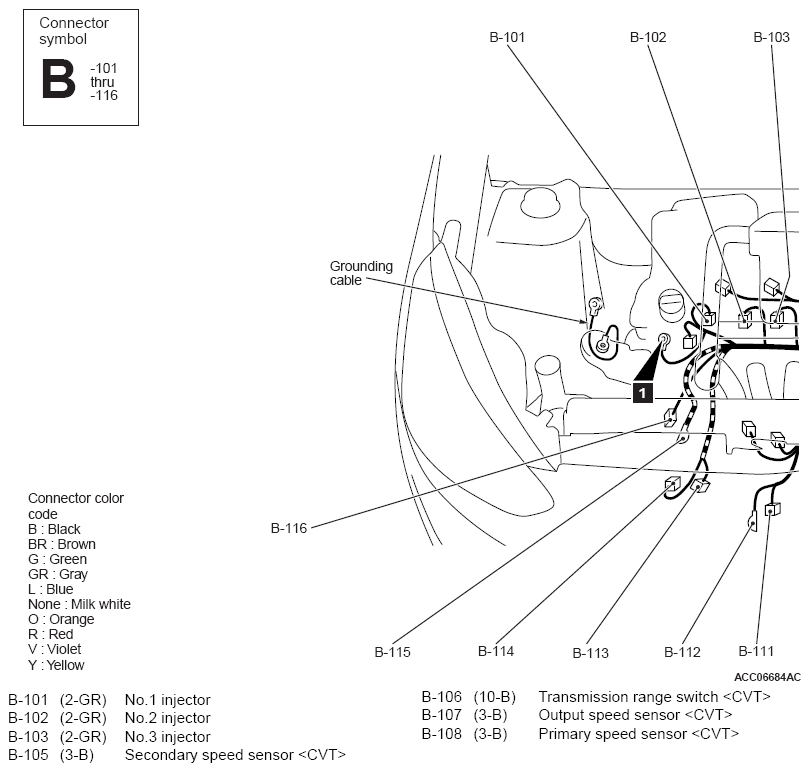

G12682528Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

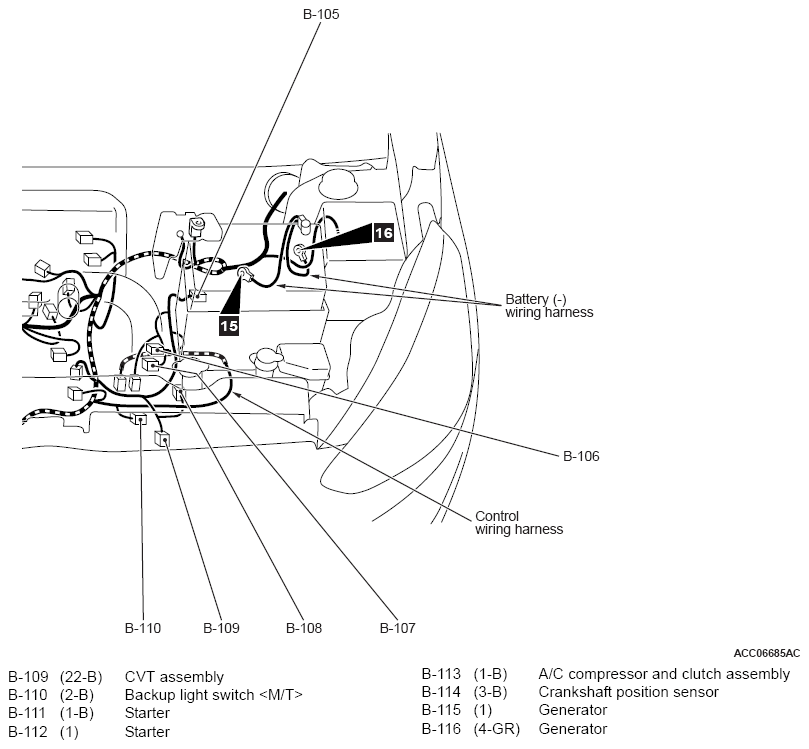

G12682529Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
