Removal And Installation

CAUTION: When the knock sensor is replaced, initialize the learned value using scan tool (M.U.T.-III) Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE .

Pre-removal Operation

Engine Room Under Cover Front Removal
Refer to UNDER COVER .
Oil Filter Removal. Refer to OIL FILTER REPLACEMENT .
Oil Filter Cover Removal. Refer to OIL PAN AND TIMING CHAIN CASE .

Post-installation Operation

Oil Filter Cover Installation. Refer to OIL PAN AND TIMING CHAIN CASE .
Oil Filter Installation. Refer to OIL FILTER REPLACEMENT .
Engine Room Under Cover Front Installation. Refer to UNDER COVER .

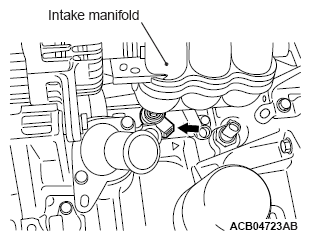

G12680716

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For the removal and installation procedures, refer to WATER HOSE AND PIPE .
