Removal And Installation: Notes


Pre-removal Operation
  • Engine Room Under Cover Front Removal. Refer to UNDER COVER .
 Post-installation Operation
  • Engine Room Under Cover Front Installation. Refer to UNDER COVER .

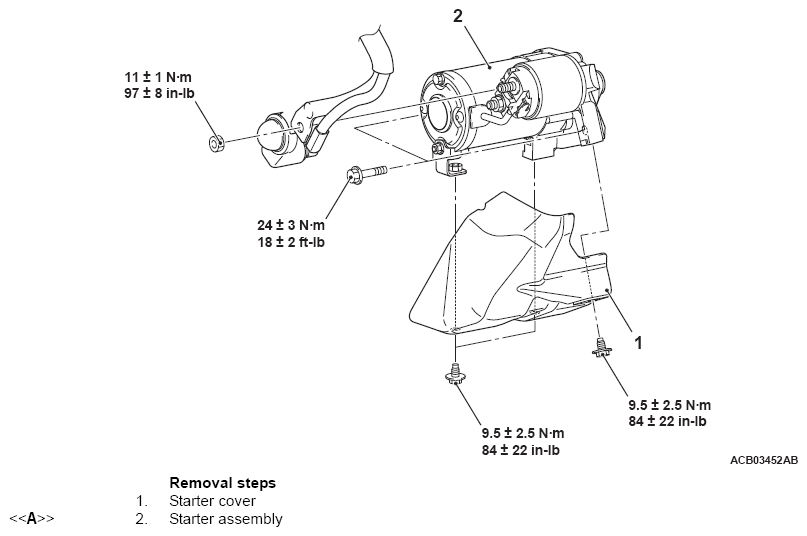

Fig 1: Removing/Installing Starter Motor Assembly Components With Torque Specification
G12680699Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
