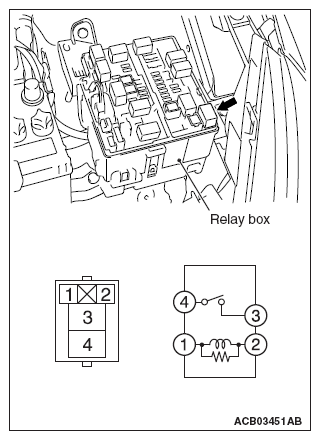

Starter Relay Continuity Check

Battery voltage Terminal number to be connected to tester Continuity test results
Not applied 4 - 3 Open loop
  • Connect terminal number 1 and positive battery terminal.
  • Connect terminal number 2 and negative battery terminal.
 Should be less than 2 ohm
G09628812Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
