Mirage LE
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Configuration Diagrams
>>
Overall Configuration Diagram

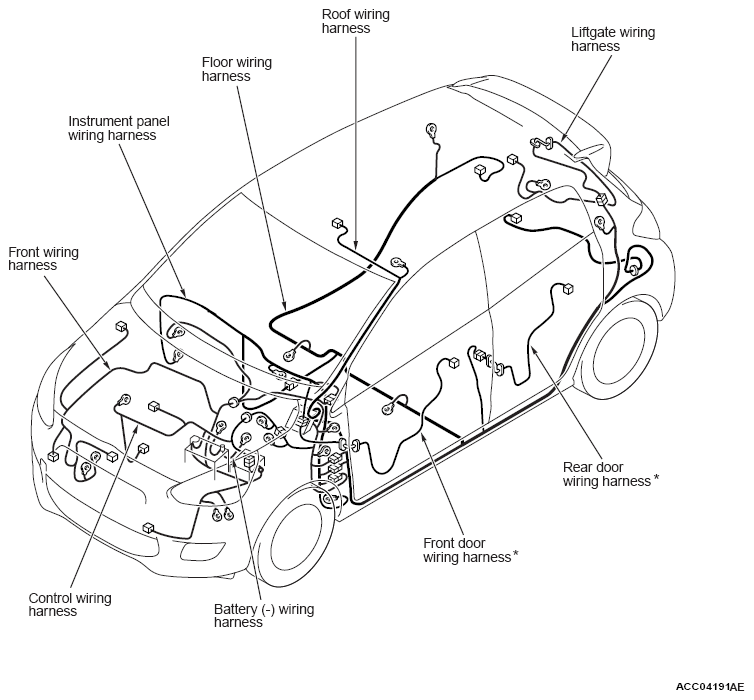

Overall Configuration Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
This illustration shows only major wiring harnesses.
*: also equipped at the right side.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
