LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2019
>>
Mirage LE
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Configuration Diagrams
>>

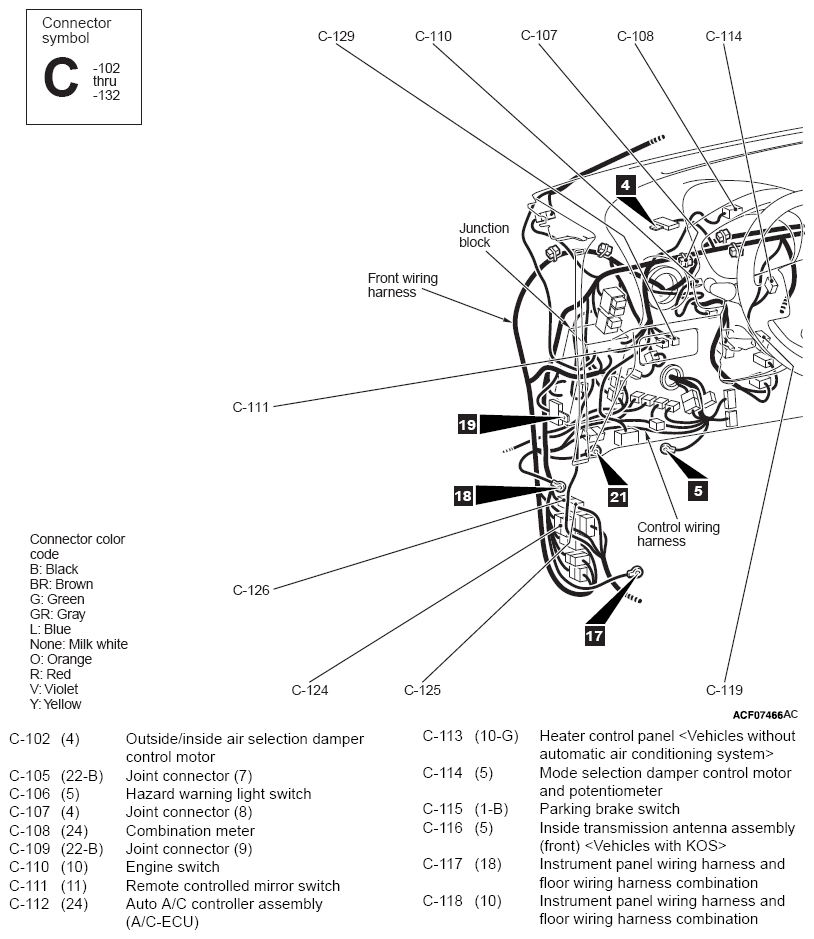

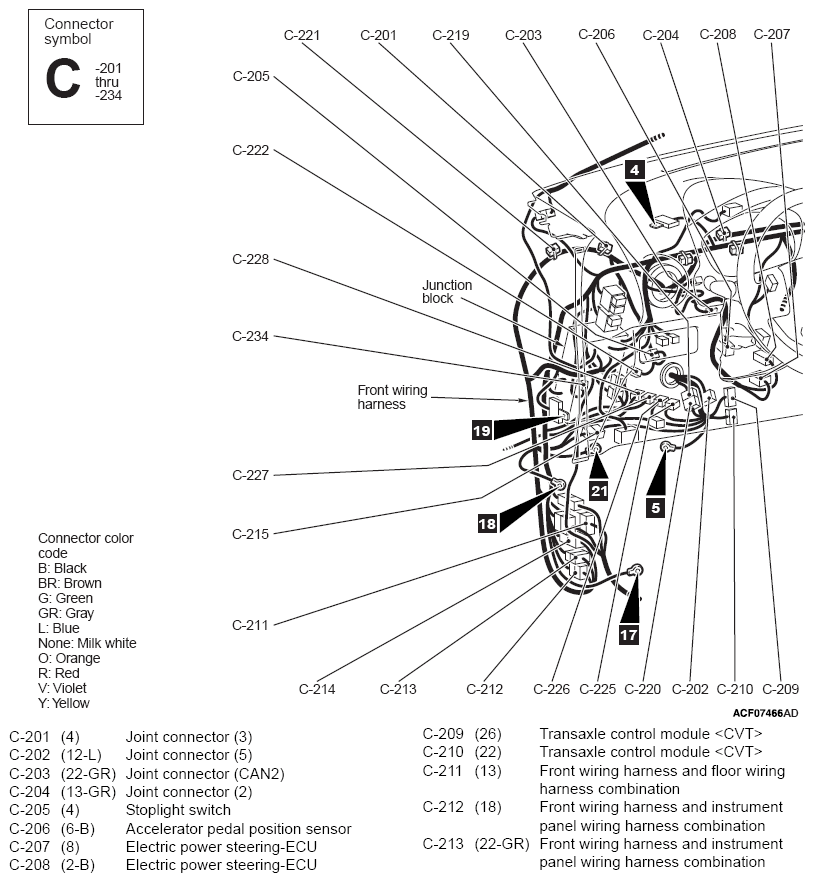

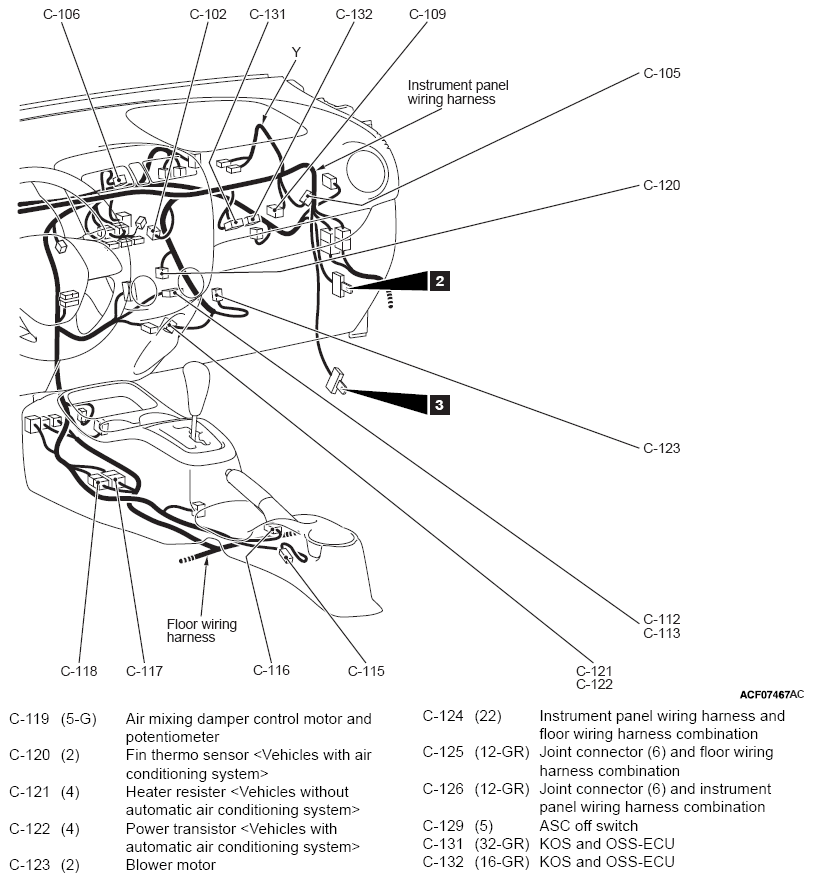

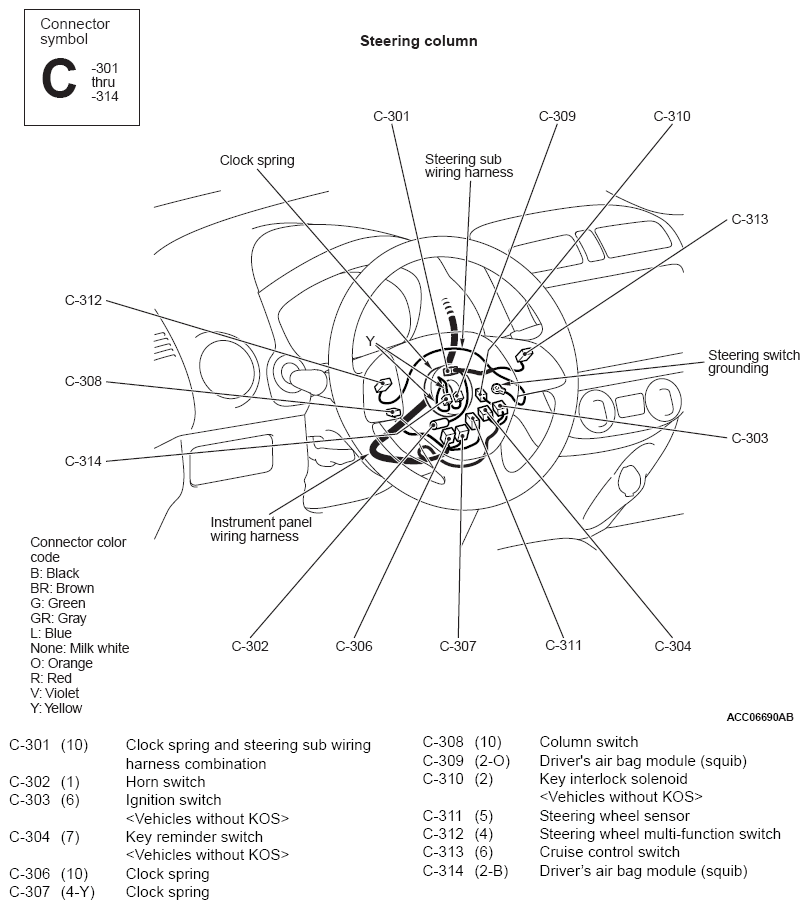

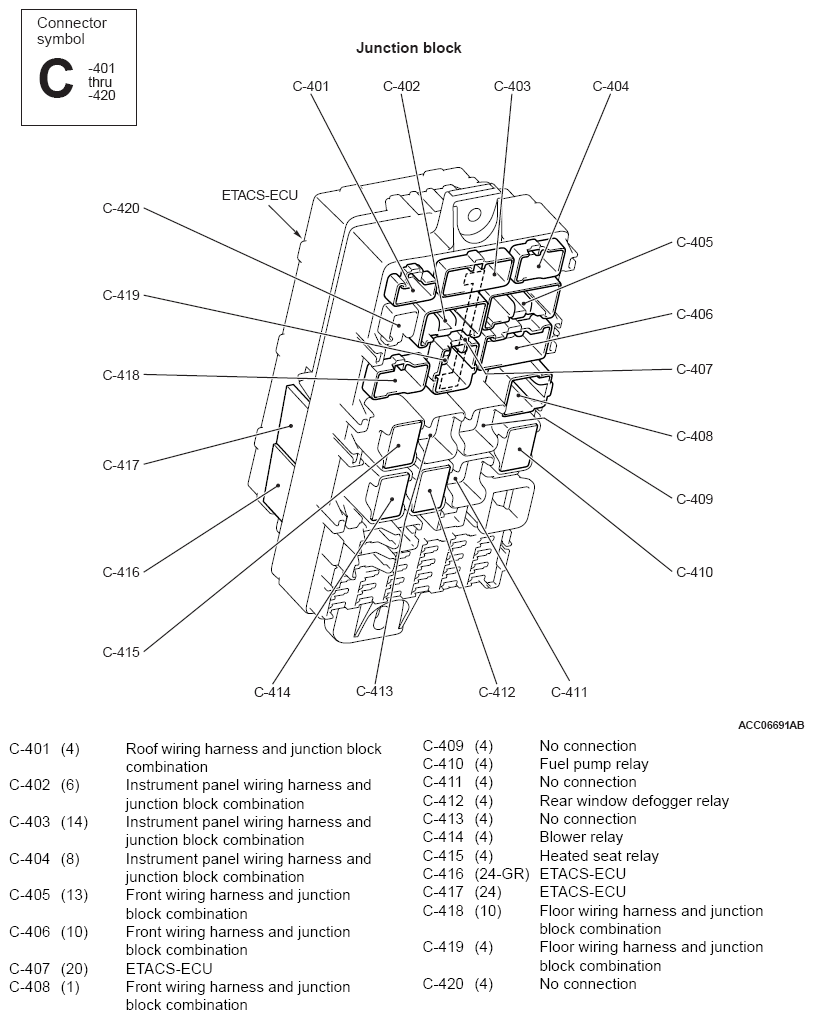

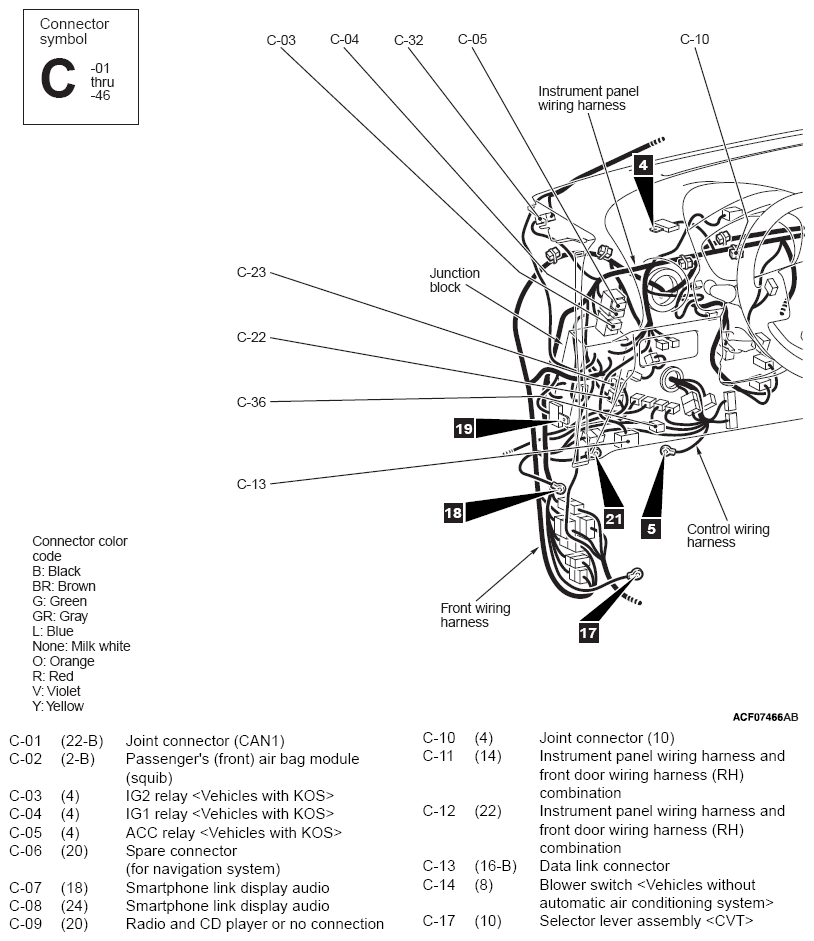

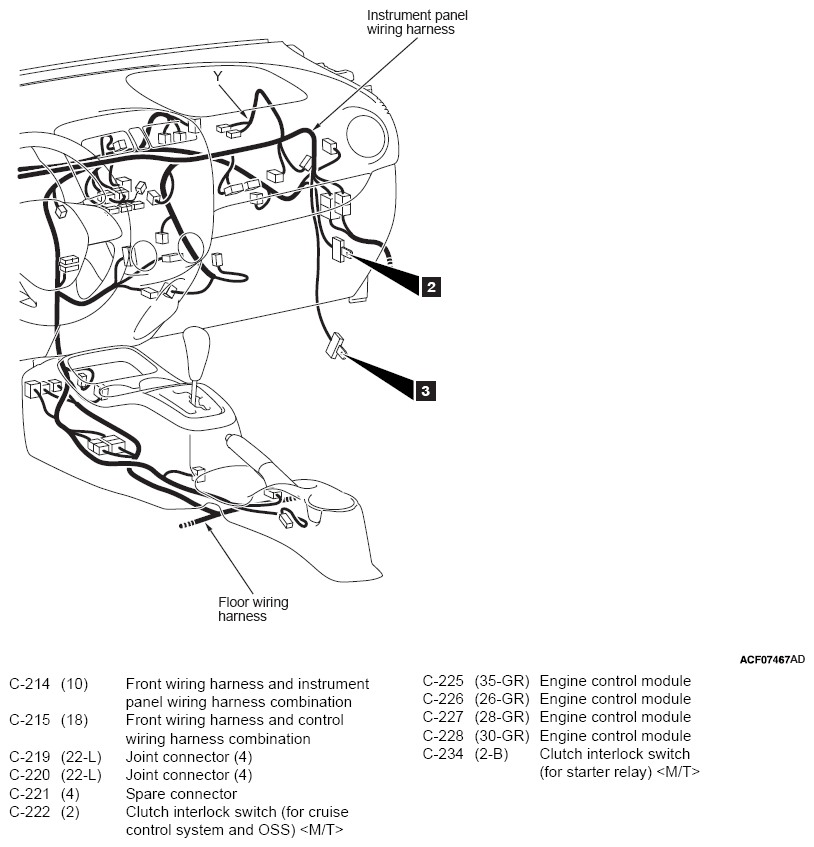

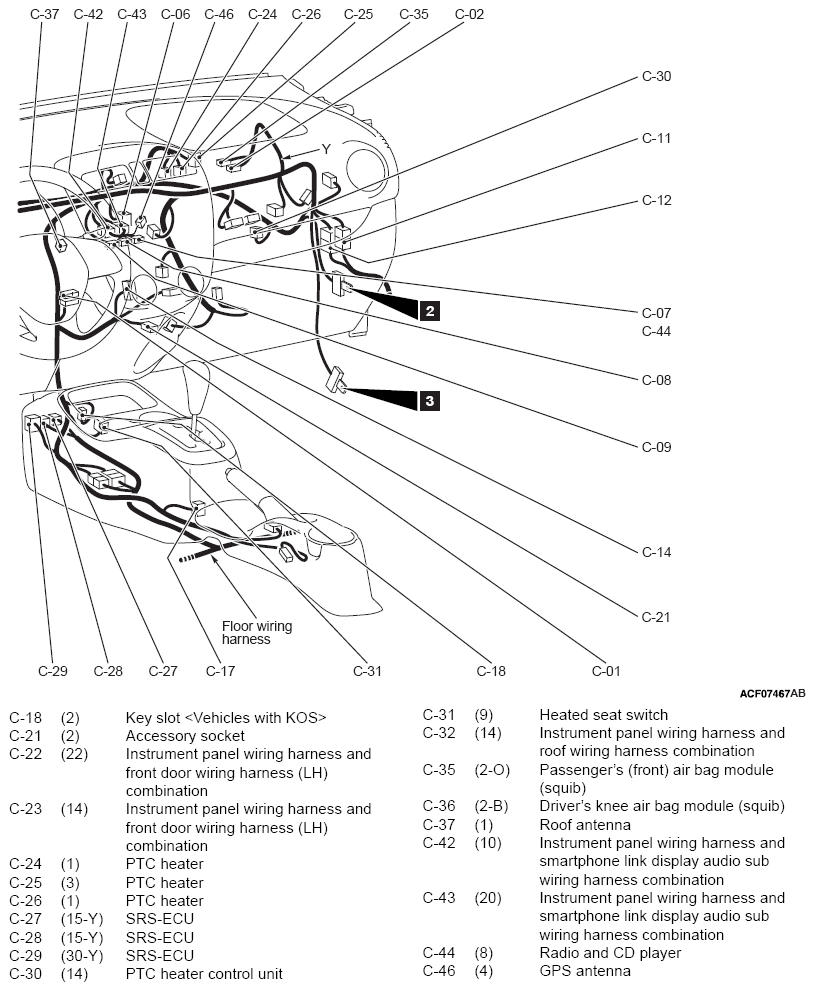

Instrument Panel
Instrument Panel
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
