Removal And Installation: Notes

Pre-removal and Post-installation operation

Front Bumper and Radiator Grille Assembly Removal and Installation Refer to FRONT BUMPER ASSEMBLY AND RADIATOR GRILLE

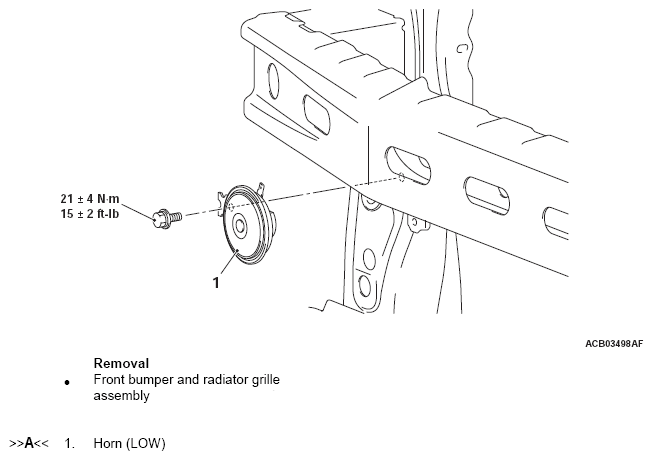

Fig 1: Removing/Installing Horn With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
