Electrical Component Locations: Grounding

G11460948Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Same ground numbers are used in the circuit diagram.

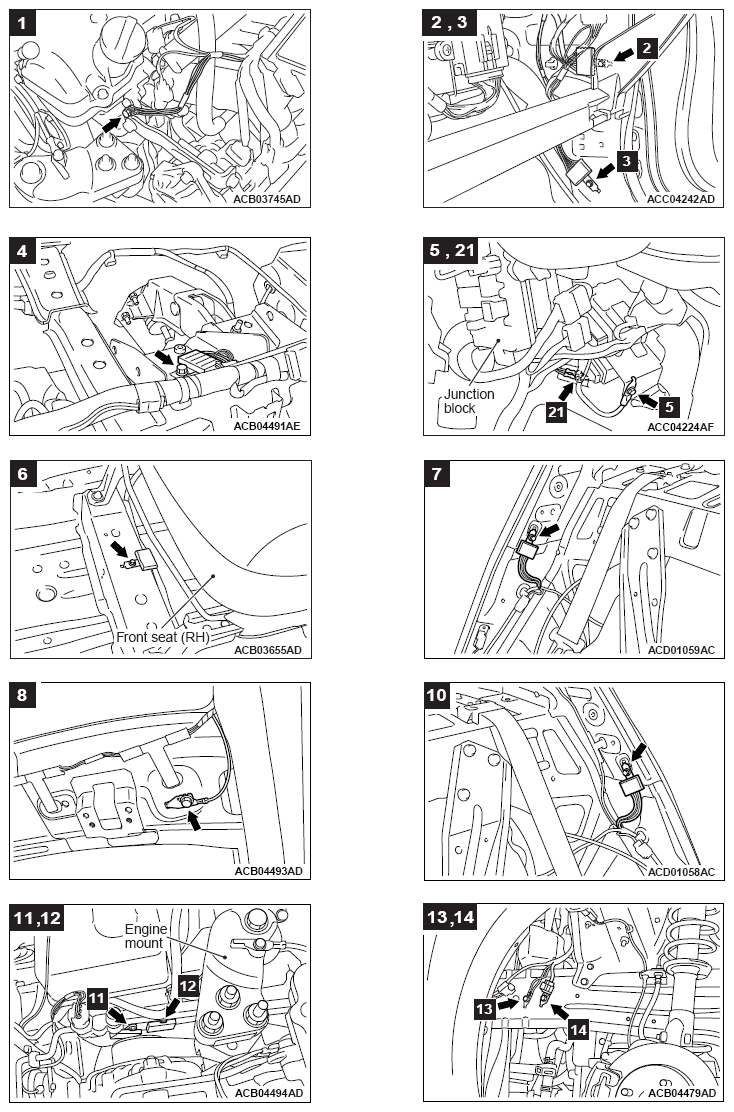

G12491058Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

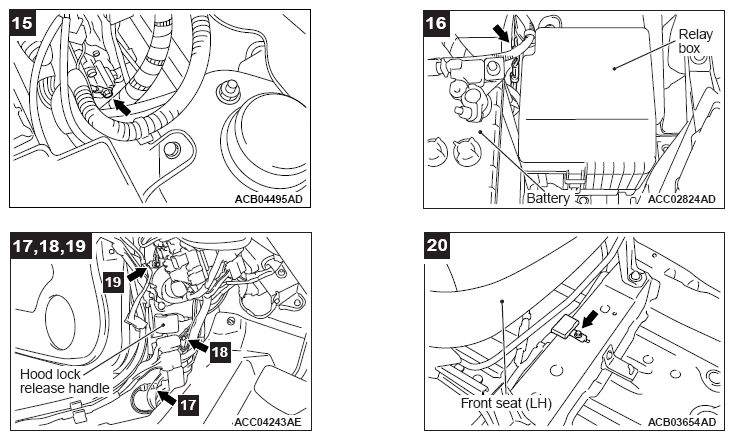

G12688463Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
