Removal And Installation
Removal And Installation
Pre-removal and post-installation operation
Instrument Panel Cover Lower Removal and Installation. Refer to
INSTRUMENT LOWER PANEL
.

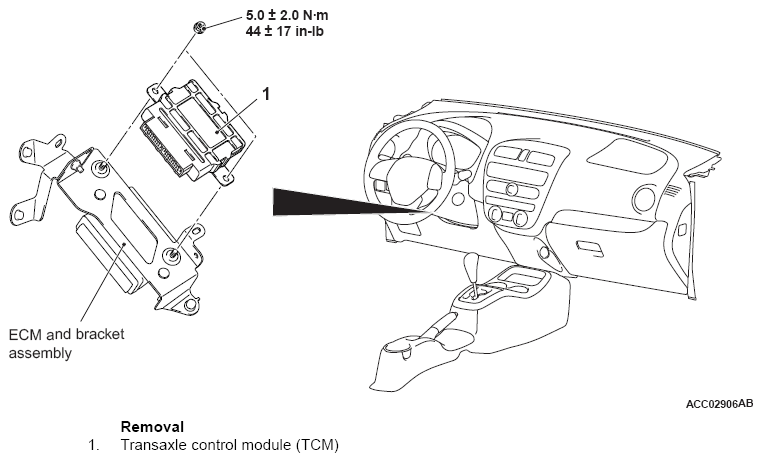

Fig 1: Removing/Installing Transaxle Control Module (TCM) Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
