Eclipse Cross SP
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Electrical Component Locations
>>
Fusible Link And Fuse
>>
Fusible Link
>>
Notes
Fusible Link: Notes
Name
Symbol

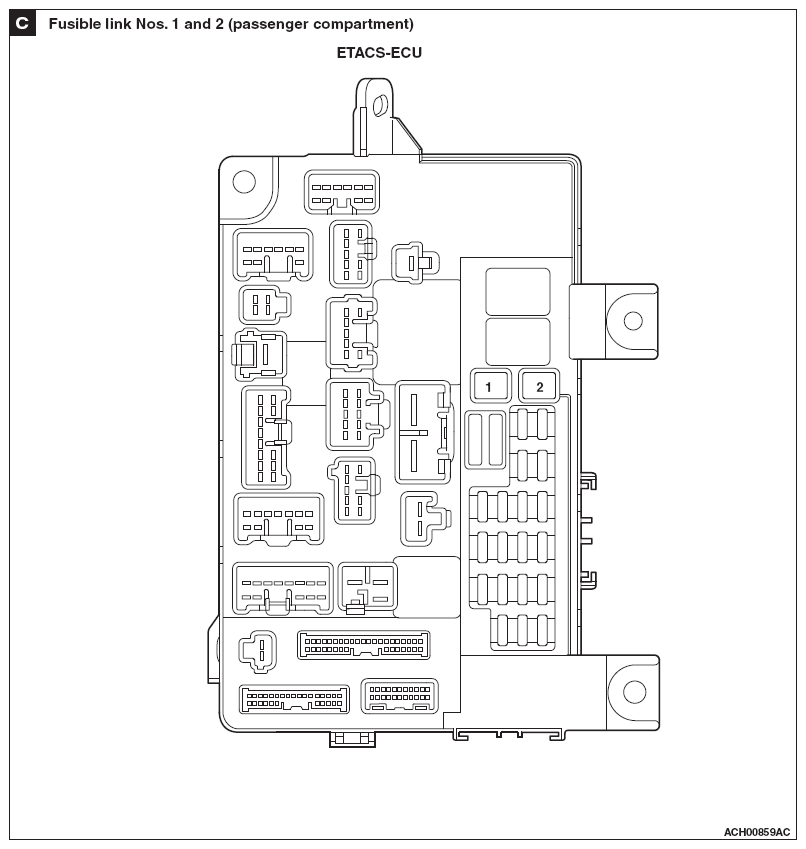

Fusible link Nos. 1 and 2 (passenger compartment)
C

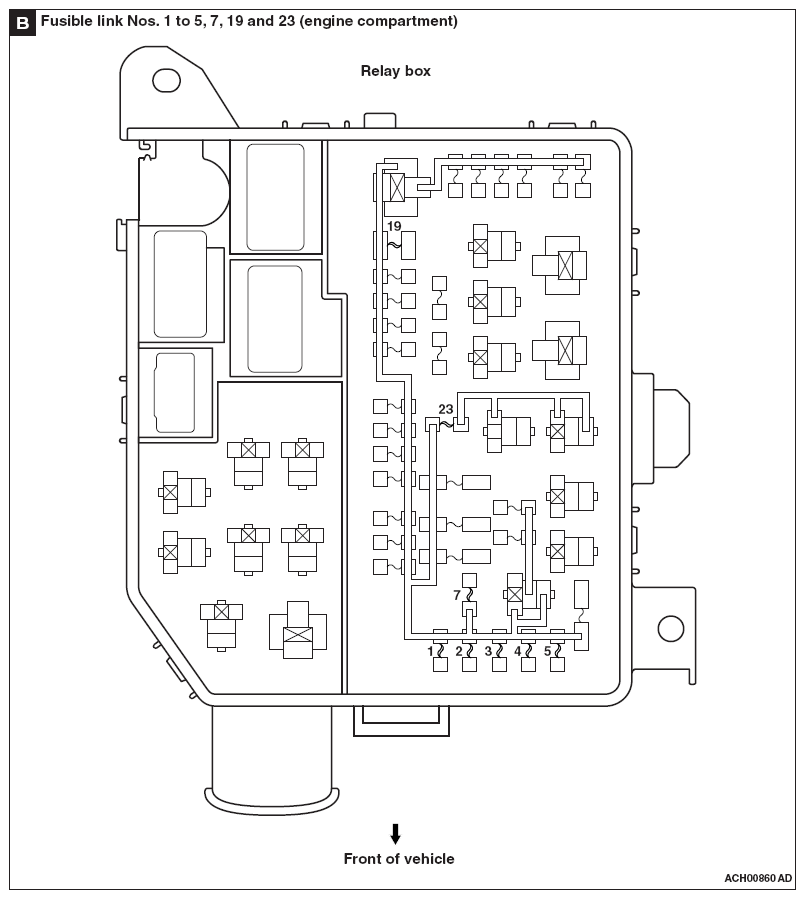

Fusible link Nos. 1 to 5, 7, 19 and 23 (engine compartment)
B

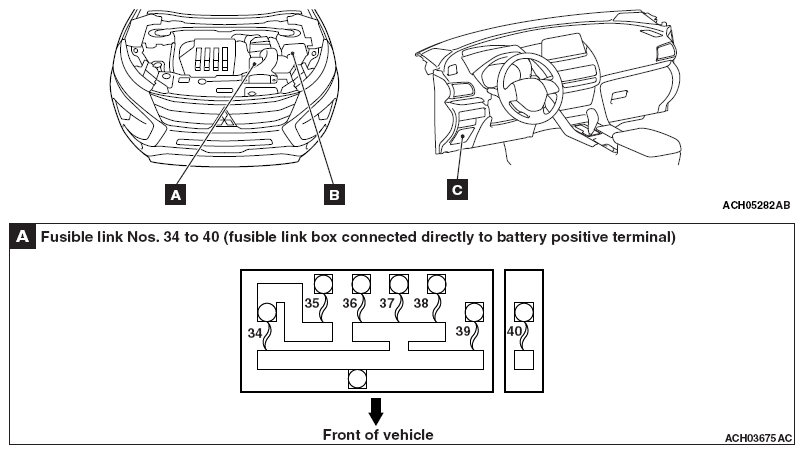

Fusible link Nos. 34 to 40 (fusible link box connected directly to battery positive terminal)
A
