>>C<< Intake Manifold/Intake Manifold Stay Installation

In accordance with the installation order, tighten them to the specified torque of 22 ± 1 N.m (16.2 ± 0.7 ft-lb).

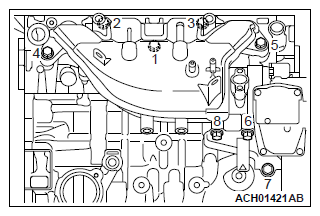

Fig 1: Intake Manifold Bolts Tightening Sequence
G12143824Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
