Home >> Mitsubishi >> 2019 >> Eclipse Cross SP >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Overhaul >> Camshaft >> Removal And Installation >> Notes

Removal And Installation: Notes

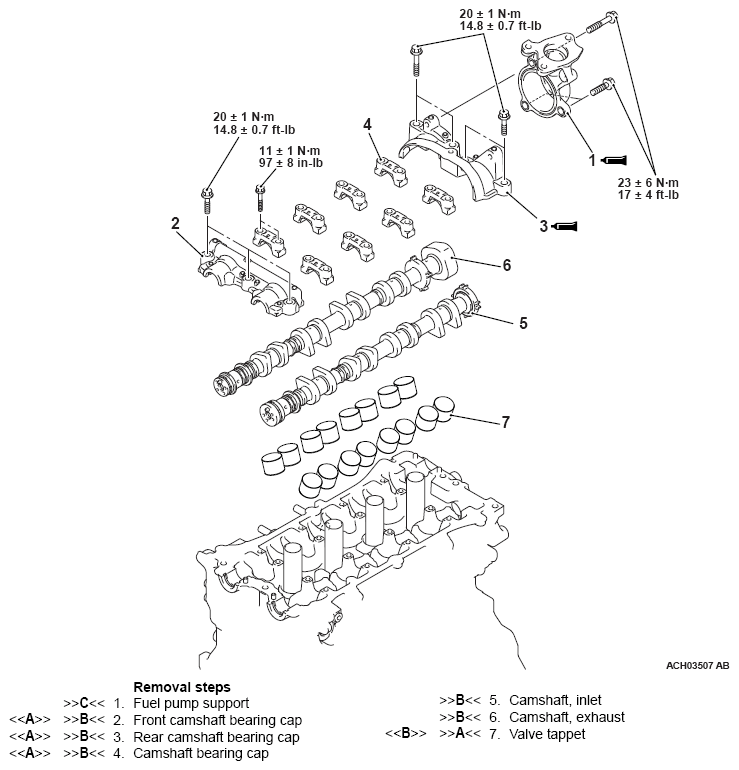

Fig 1: Removing/Installing Camshaft Components With Torque Specification

G12647926

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
