One-Touch Start System (OSS)

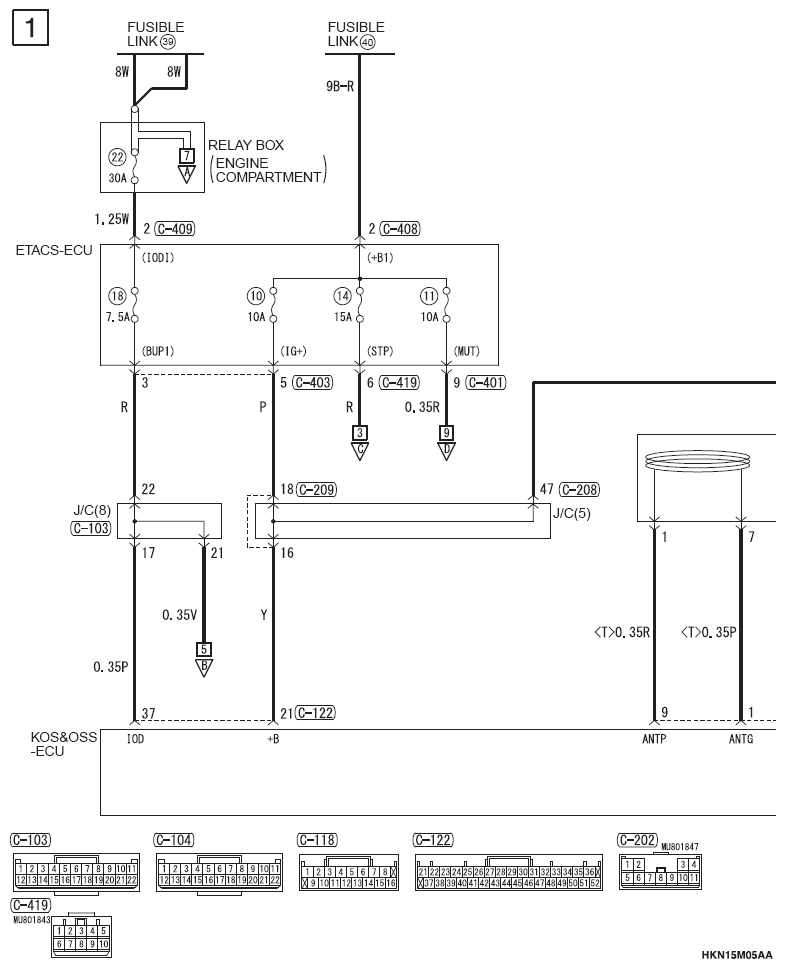

G12651600Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

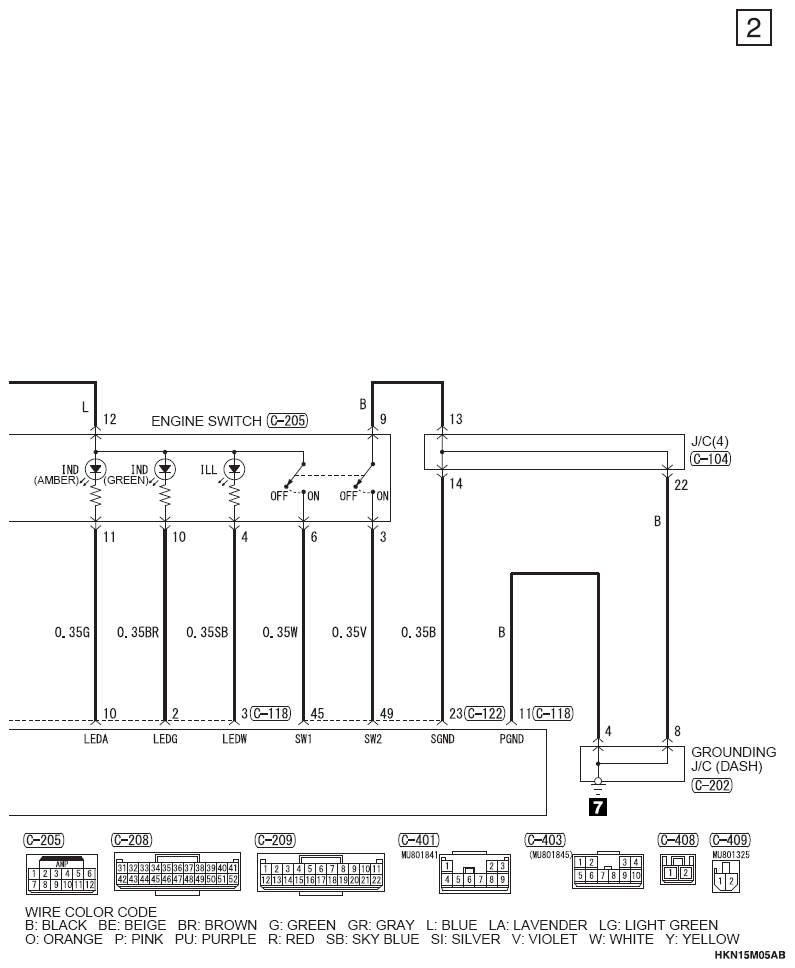

G12651601Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

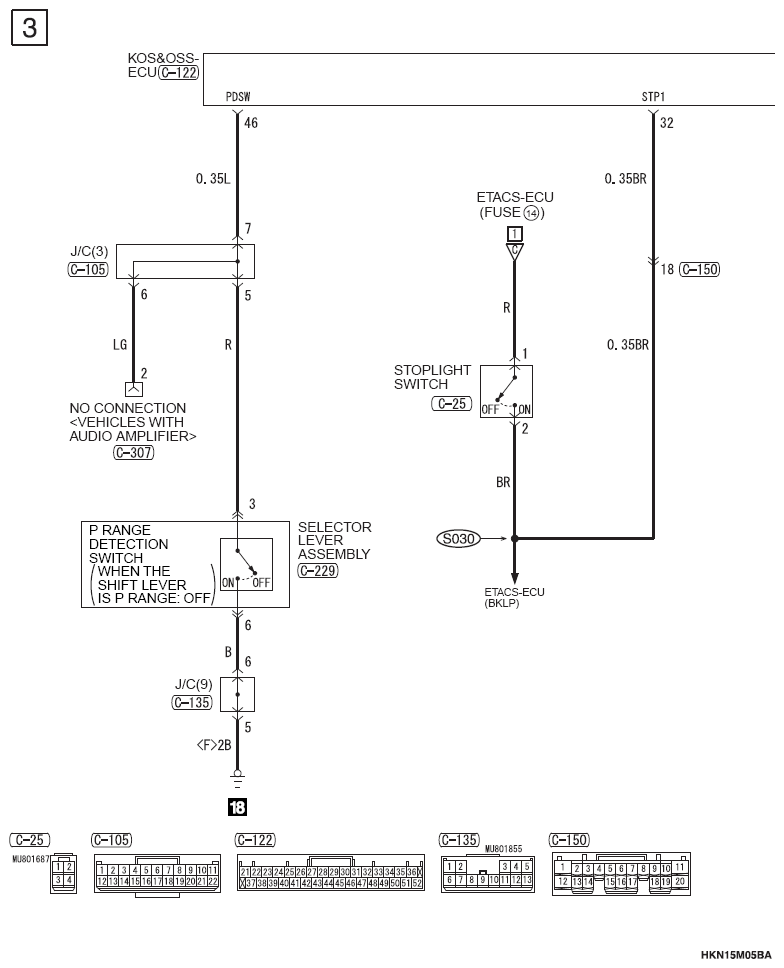

G12651602Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

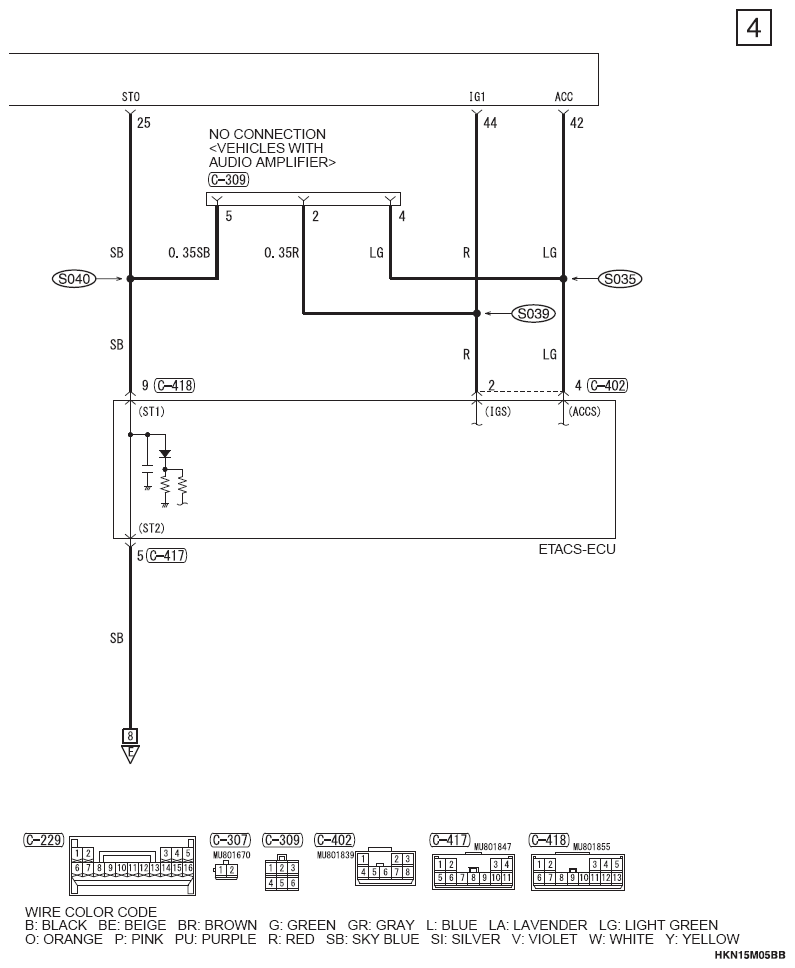

G12651603Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

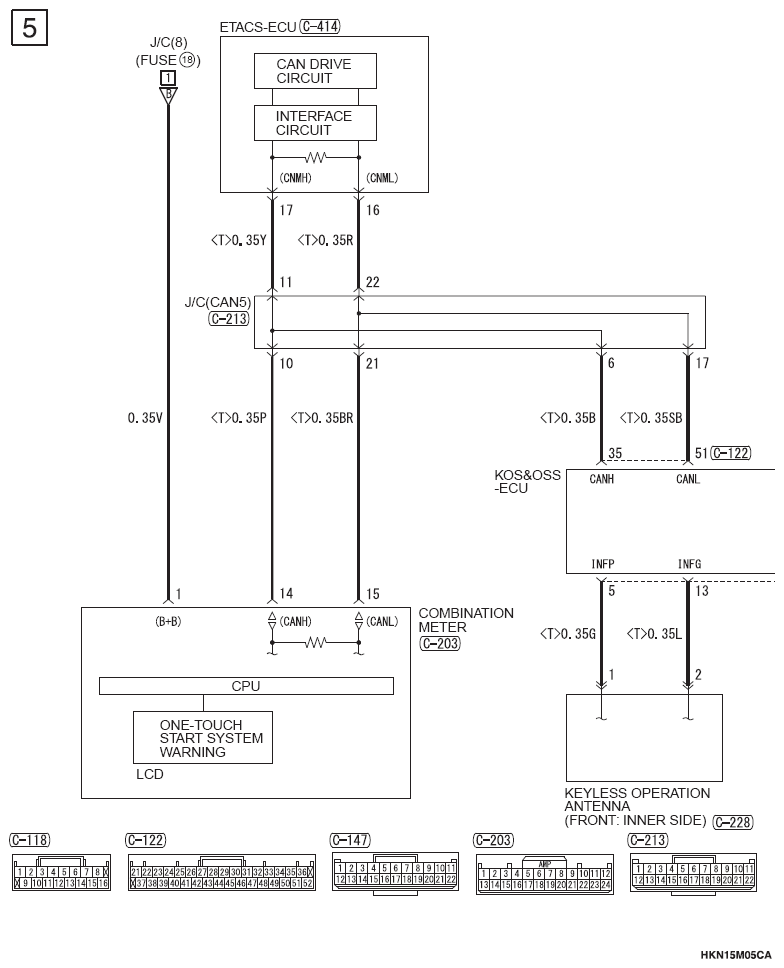

G12651604Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

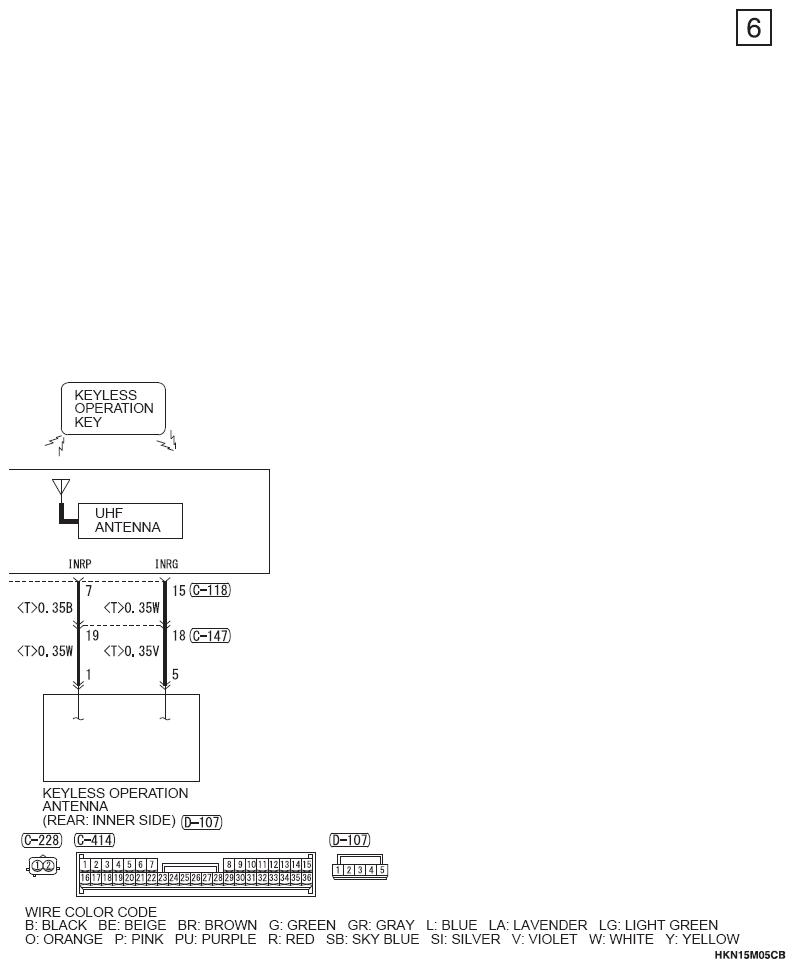

G12651605Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

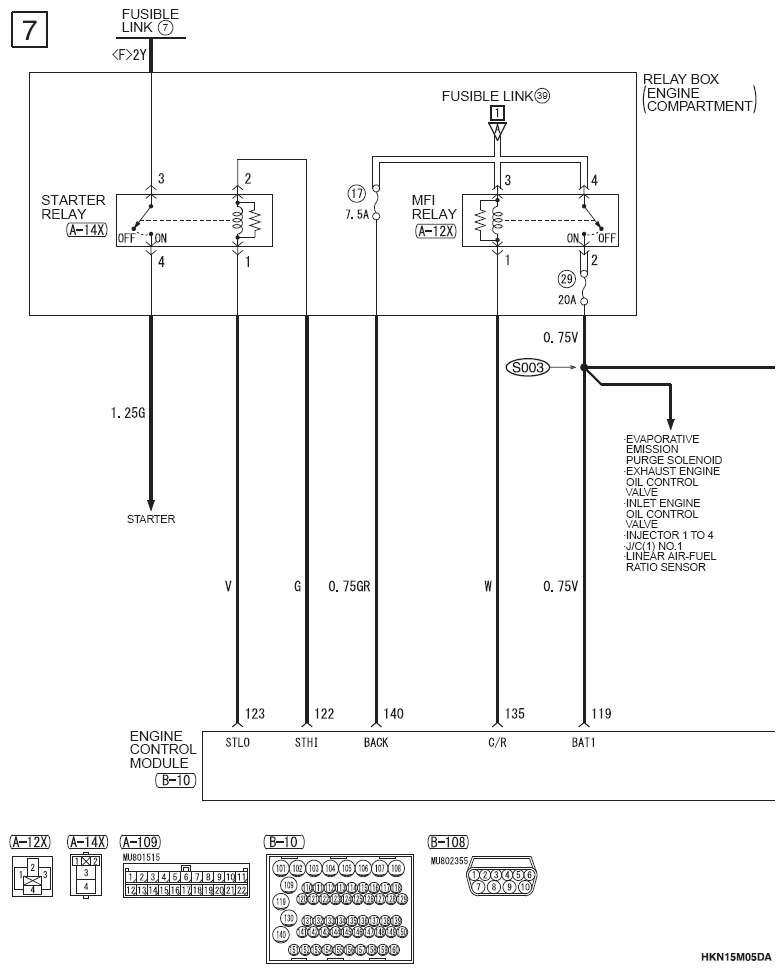

G12651606Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

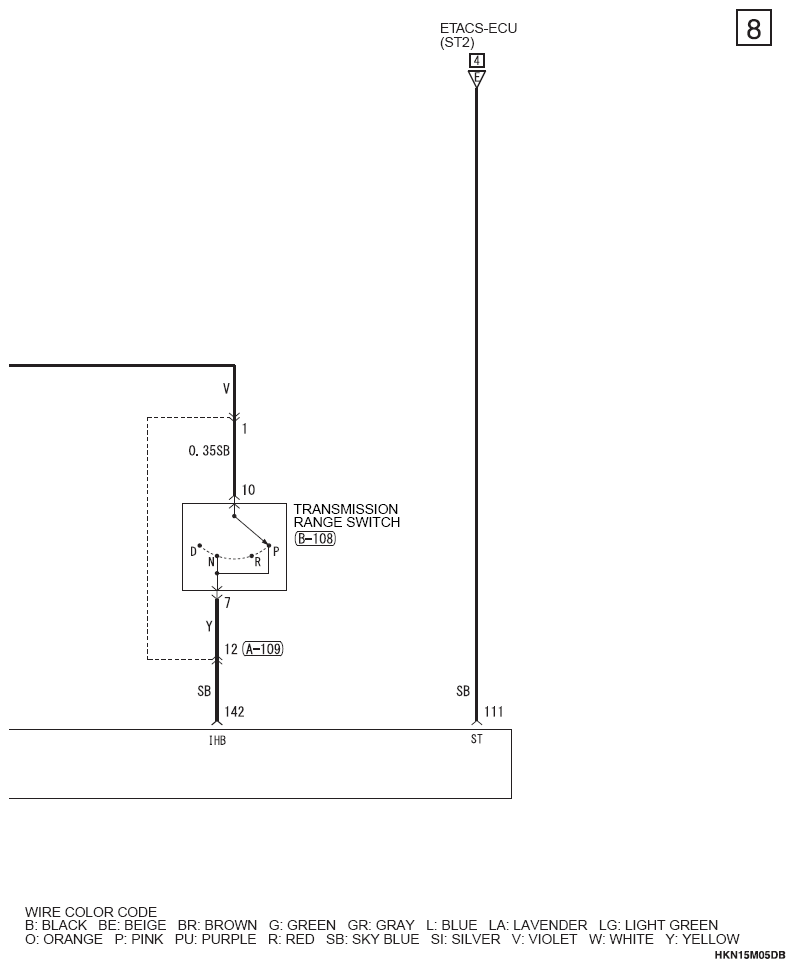

G12651607Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

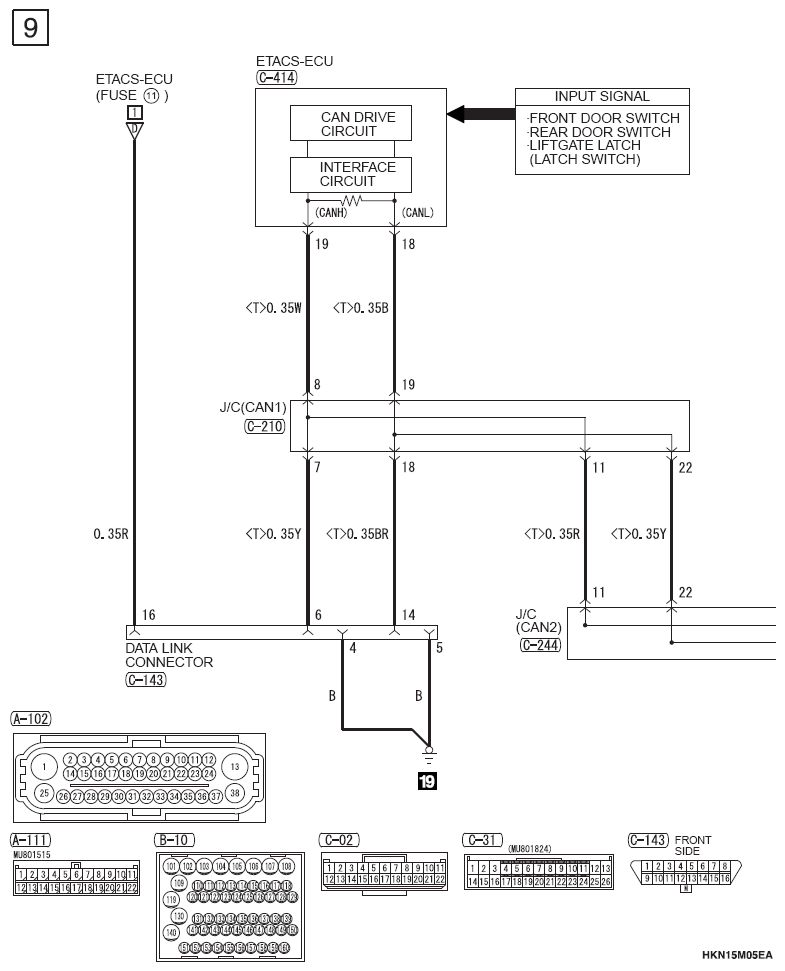

G12651608Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

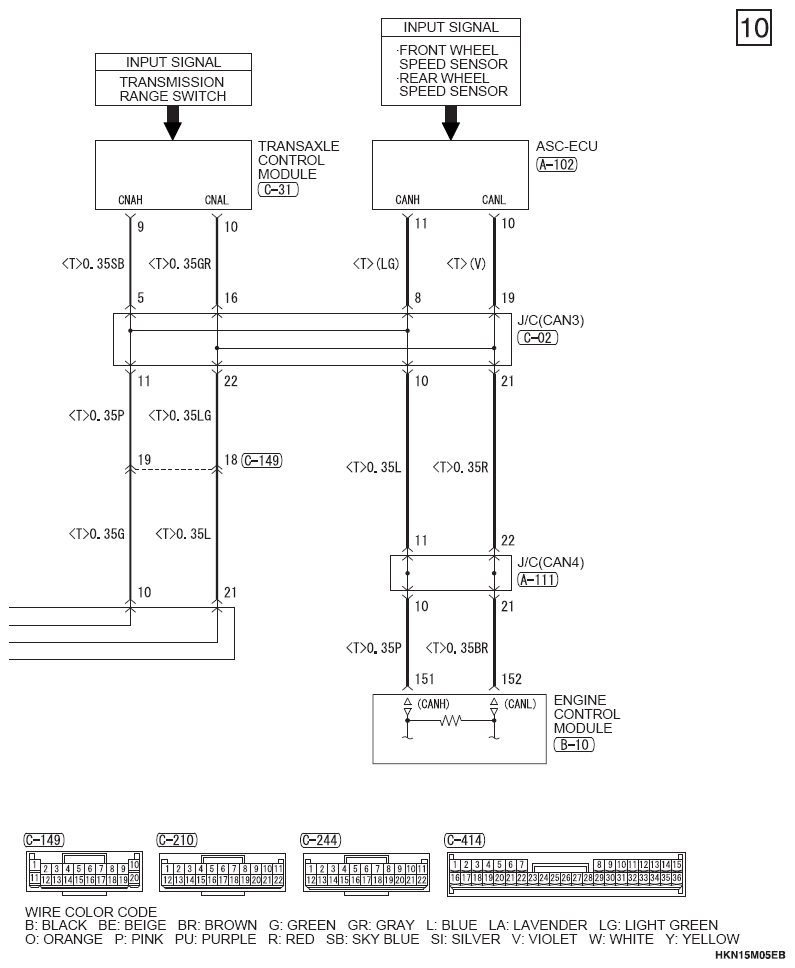

G12651609Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
