>>A<< Steering Column Switch Assembly Installation

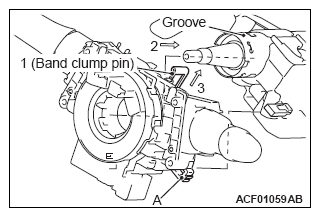

  1. Using pliers or a similar tool, pinch and lift the band clump pin shown in the figure.
  2. Align the part "A" position in the figure with the steering lock side rib, and then insert the steering column switch assembly into the column shaft.
  3. After mounting the steering column switch assembly by securely fitting the steering column switch assembly claw with the column shaft groove, release the band clump pin.
    G12128730Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
