LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2019
>>
Eclipse Cross LE
>>
Repair and Diagnosis
>>
Engine Performance
>>
Wiring Diagrams
>>
Circuit Diagrams
>>
Starting System

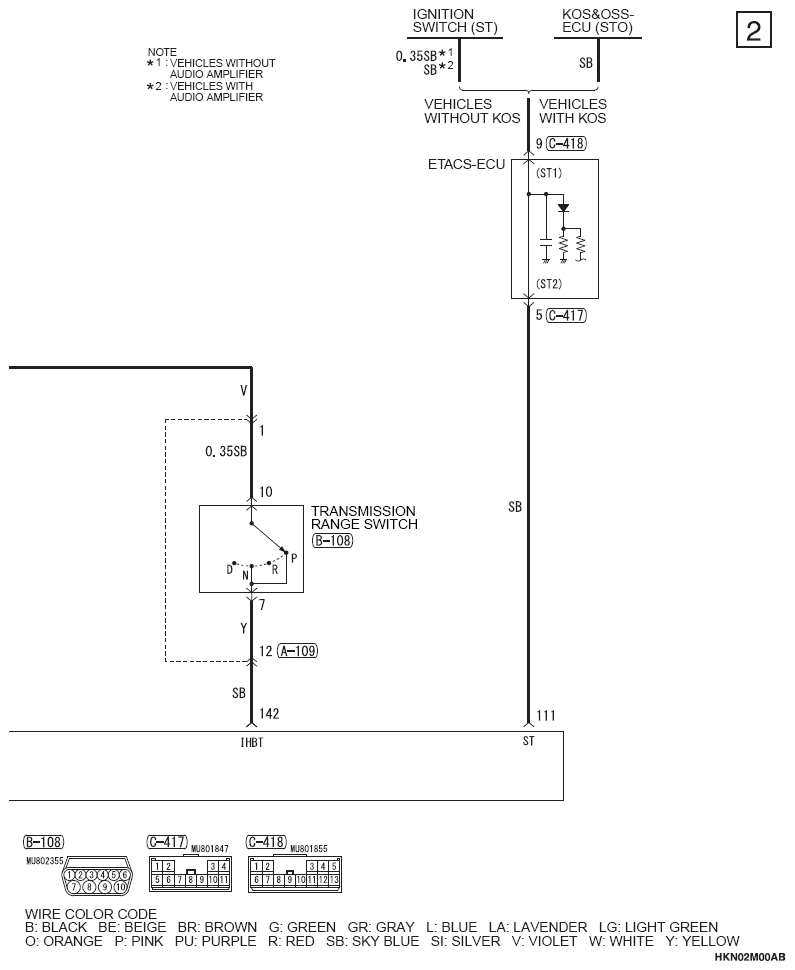

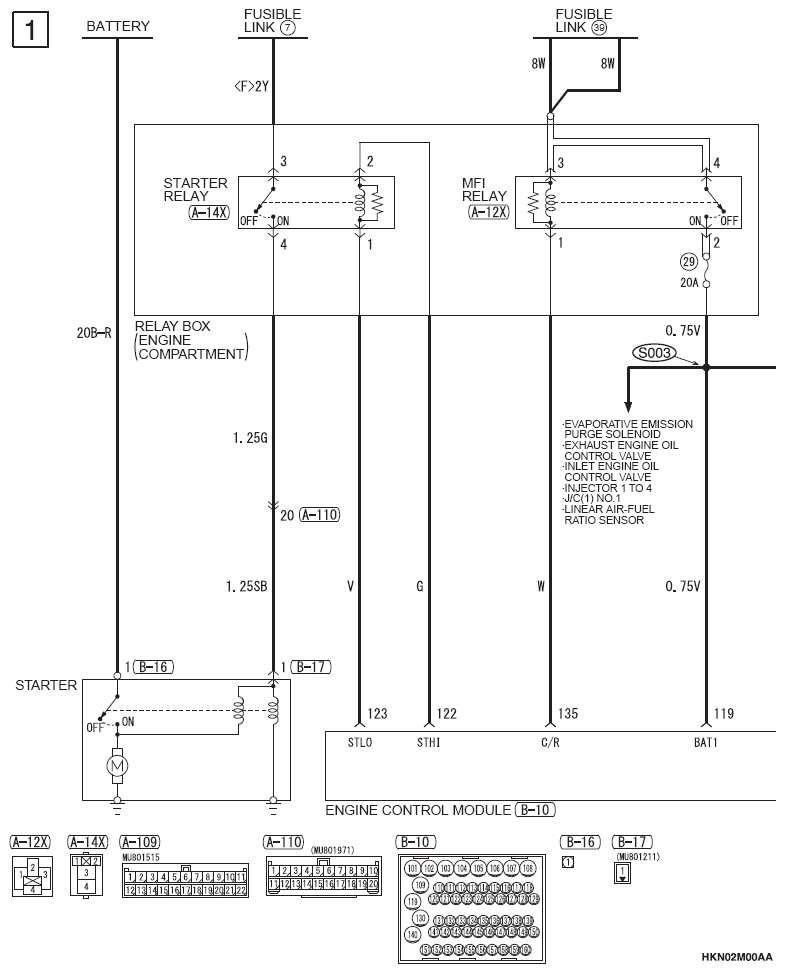

Starting System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
