LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2019
>>
Eclipse Cross LE
>>
Repair and Diagnosis
>>
Engine Performance
>>
Wiring Diagrams
>>
Circuit Diagrams
>>
Cooling System

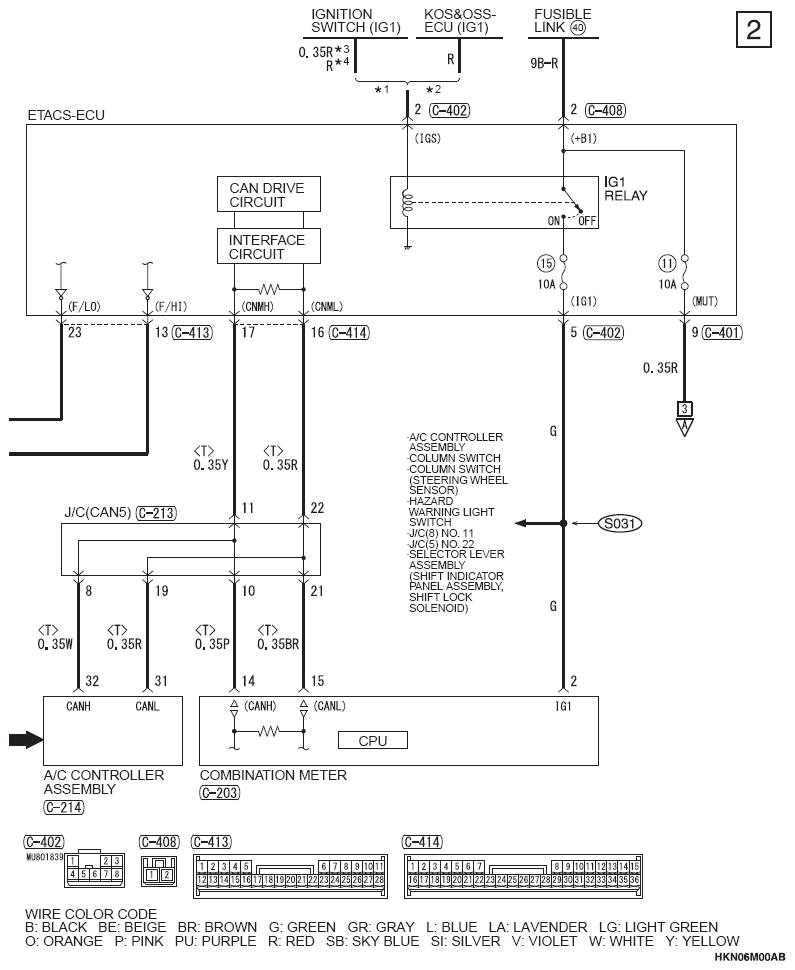

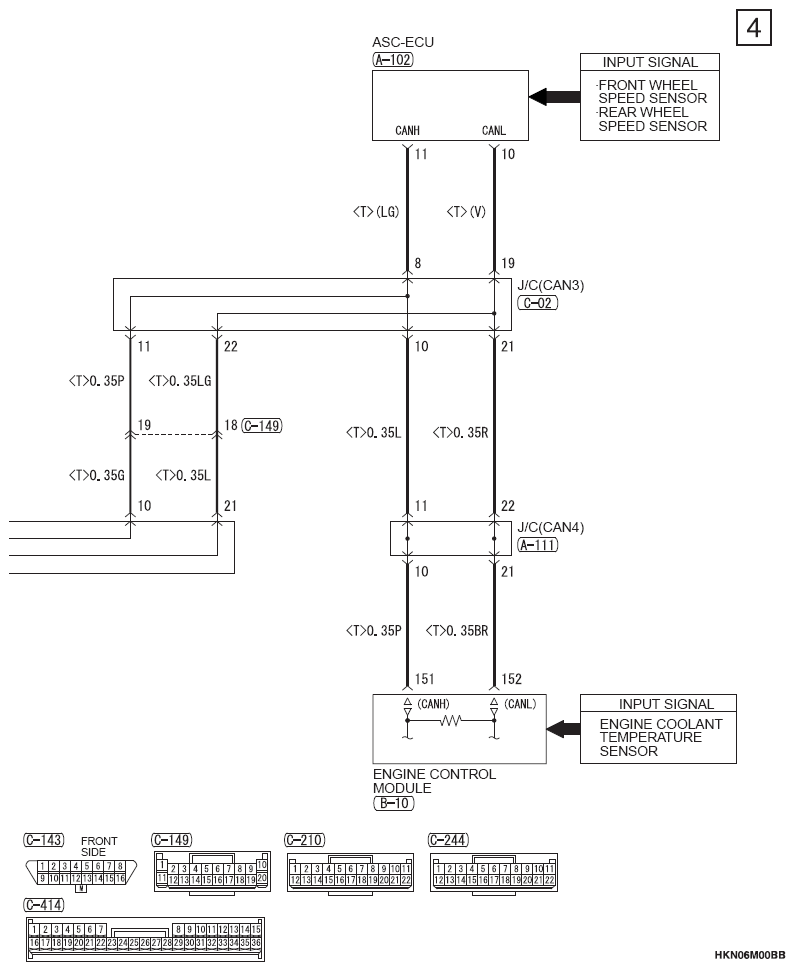

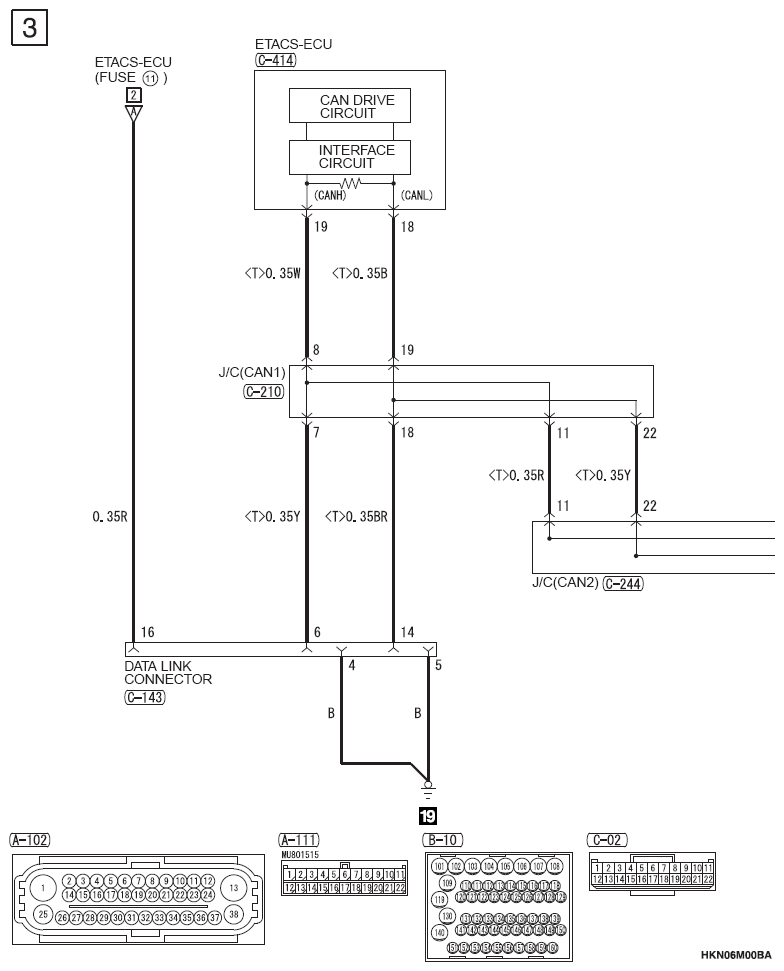

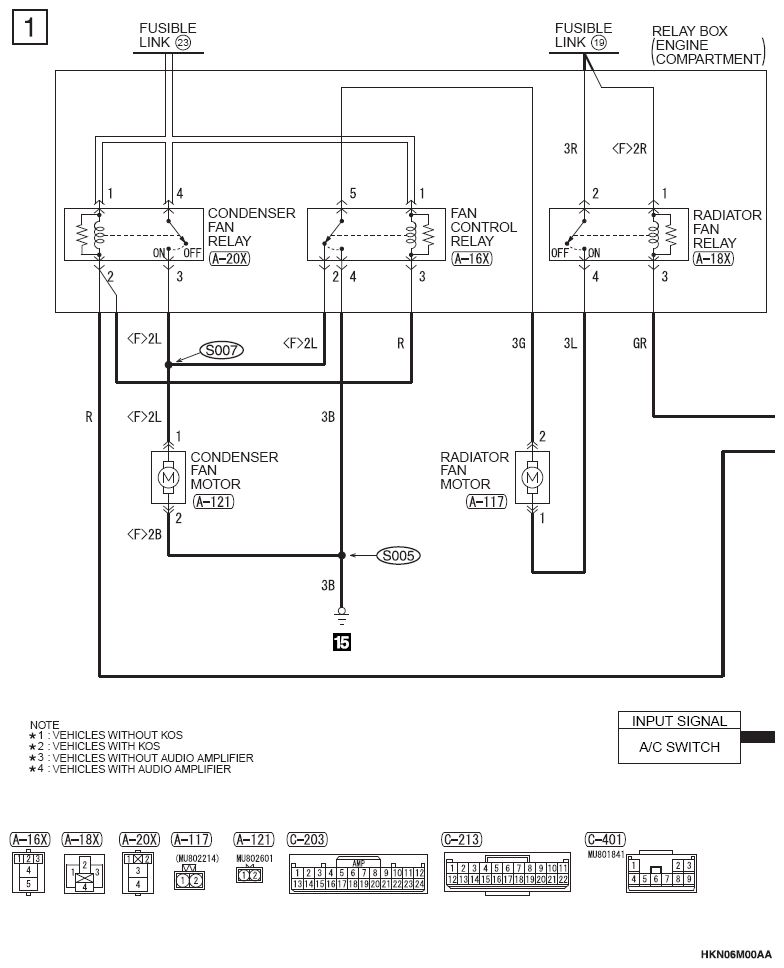

Cooling System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
