Home >> Mitsubishi >> 2019 >> Eclipse Cross LE >> Repair and Diagnosis >> Engine Performance >> Wiring Diagrams >> Circuit Diagrams >> Accessory Socket

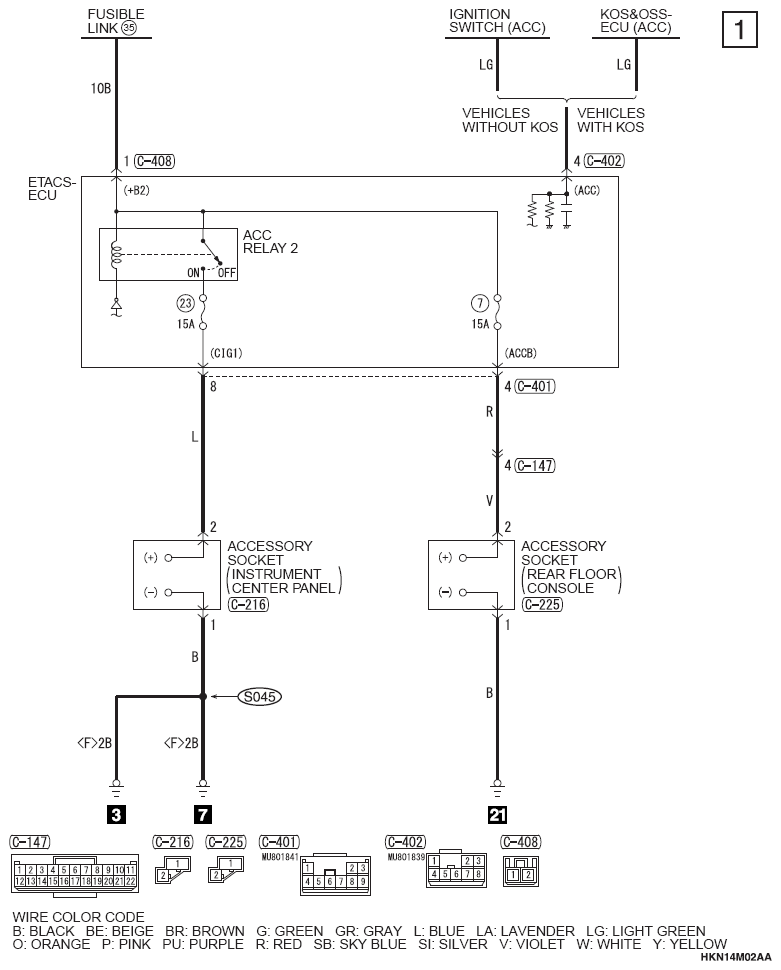

Accessory Socket

G12651583

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
