Engine Compartment

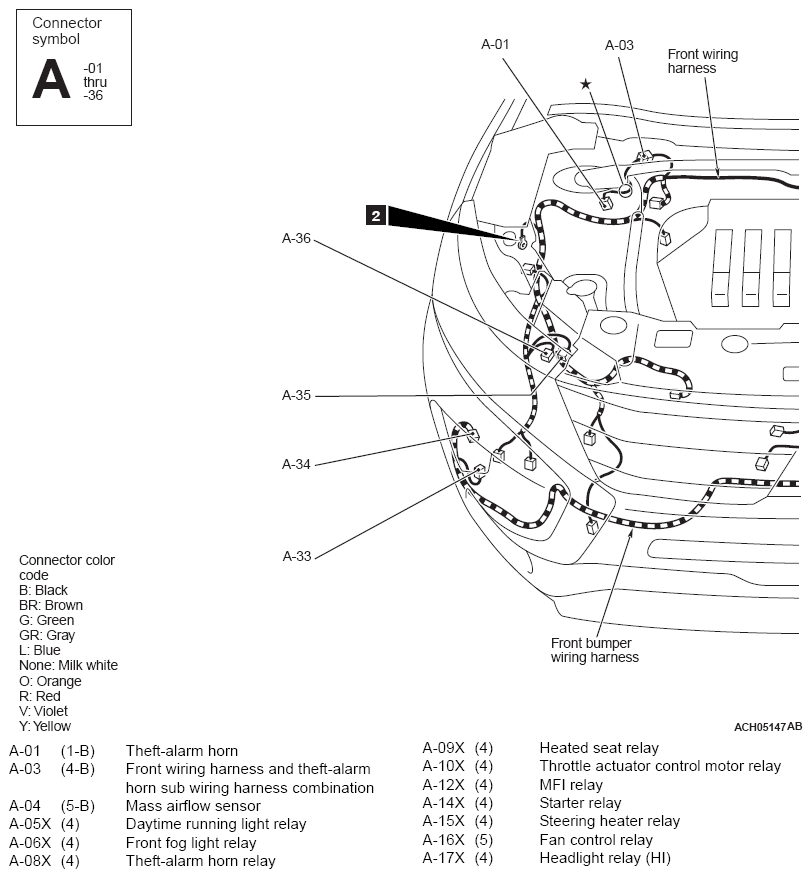

G12650946Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

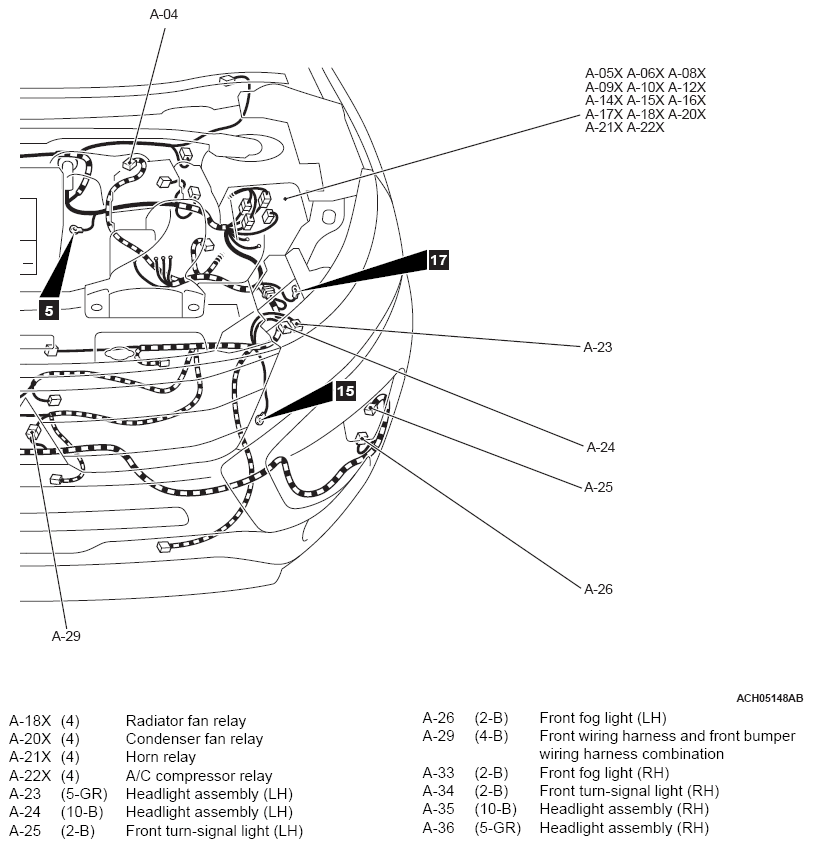

G12650947Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

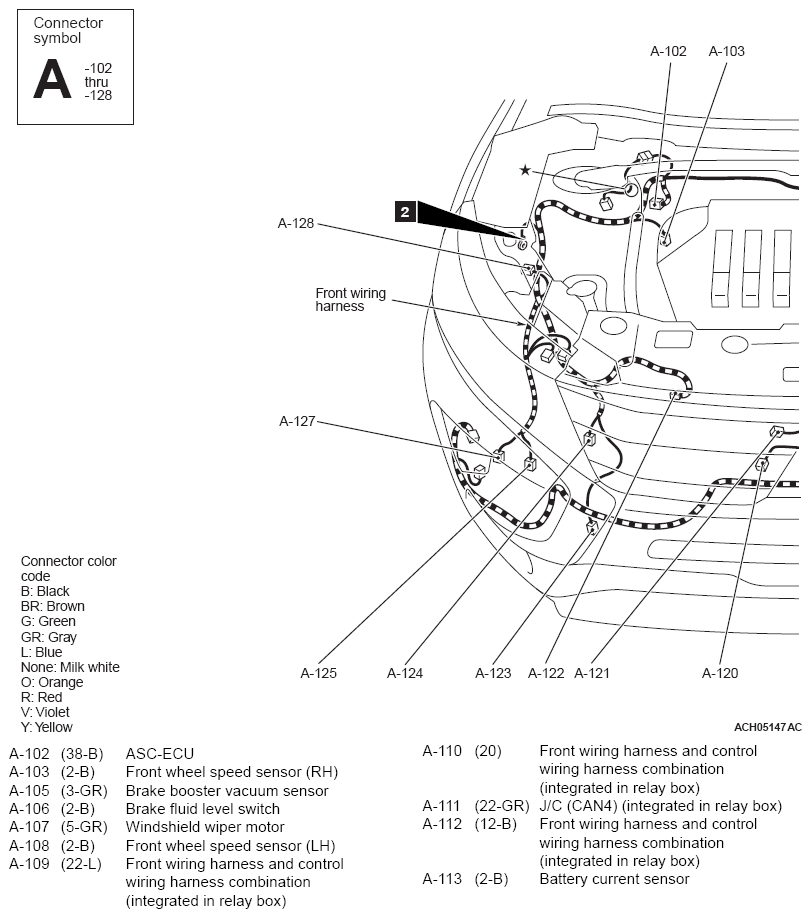

G12650948Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

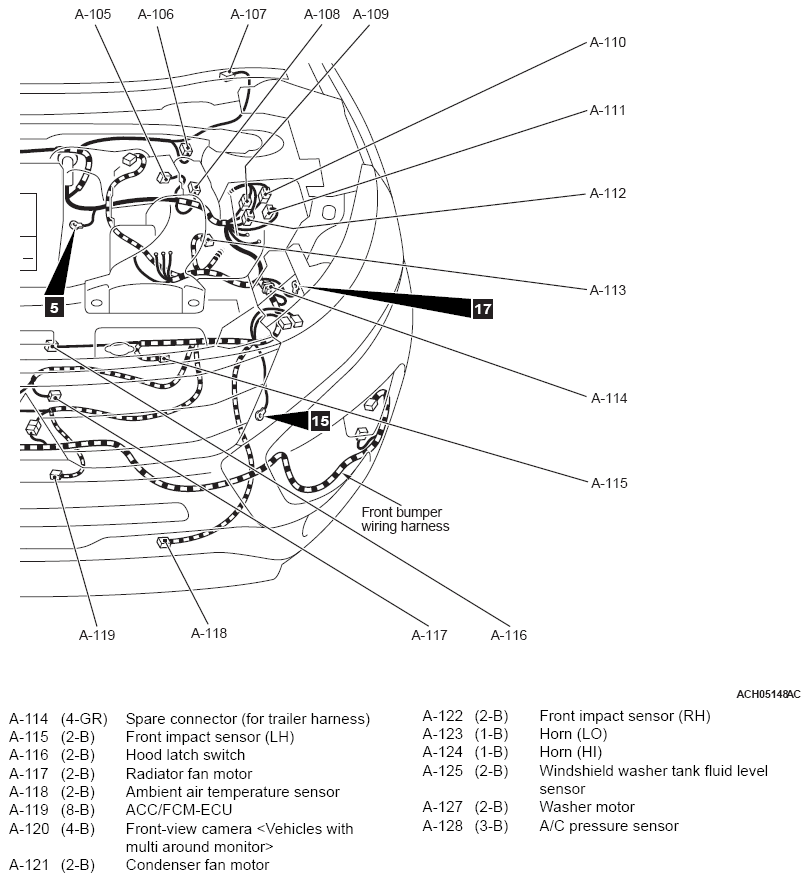

G12650949Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
