<<E>> Transaxle Assembly Coupling Bolt And Transaxle Assembly Removal

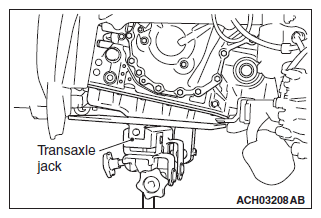

  1. Hold the transaxle assembly with the transaxle jack and remove the transaxle assembly coupling bolt.
  2. Pull out the transaxle assembly downward from the vehicle.

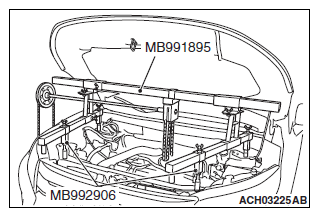

    G12147295Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    G12147296Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
