<<C>> Torque Converter And Drive Plate Coupling Bolt Removal

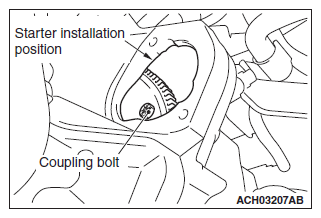

Remove the coupling bolt from the starter installation section.

G12147294

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
