Paddle Shift Switch Check

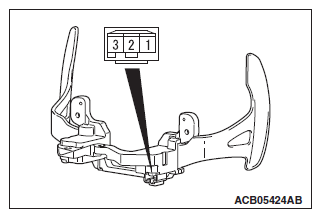

  1. Check the continuity between the paddle shift switch connector terminals.
    G12147306Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Paddle shift lever Terminal number Resistance value
    Upshift and hold the lever. 3 - 2 Continuity exists (2 Ω or less).
    Downshift and hold the lever. 1 - 2
    No operation No continuity between the terminals.
  2. In the cases other than the above, replace the paddle shift assembly.
