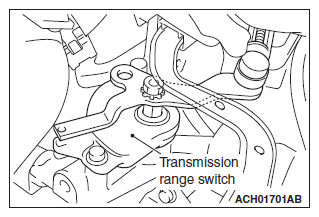

Transmission Range Switch Continuity Check

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

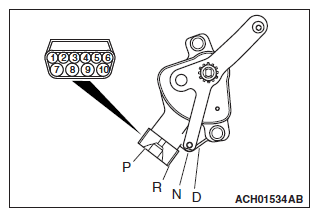

Item	Terminal number	Resistance value
P	3 - 2, 7 - 10	Continuity exists (2 Ω or less).
	Other than above	No continuity
R	3 - 9	Continuity exists (2 Ω or less).
	Other than above	No continuity
N	3 - 8, 7 - 10	Continuity exists (2 Ω or less).
	Other than above	No continuity
D	3 - 5	Continuity exists (2 Ω or less).
	Other than above	No continuity
