Home
>>
Mitsubishi
>>
2019
>>
Eclipse Cross ES, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Continuously Variable Transaxle (CVT) (With Diagnostics)
>>
Electronic Control Coupling <AWD>
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

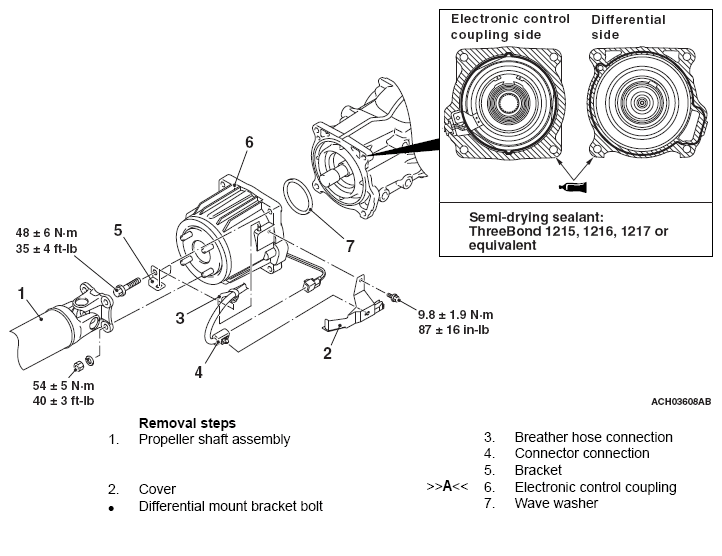

Fig 1: Removing/Installing Electronic Control Coupling Components With Torque Specification (AWD)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
