DTC P0776: Abnormality In Secondary Pressure Solenoid Valve Function
>>

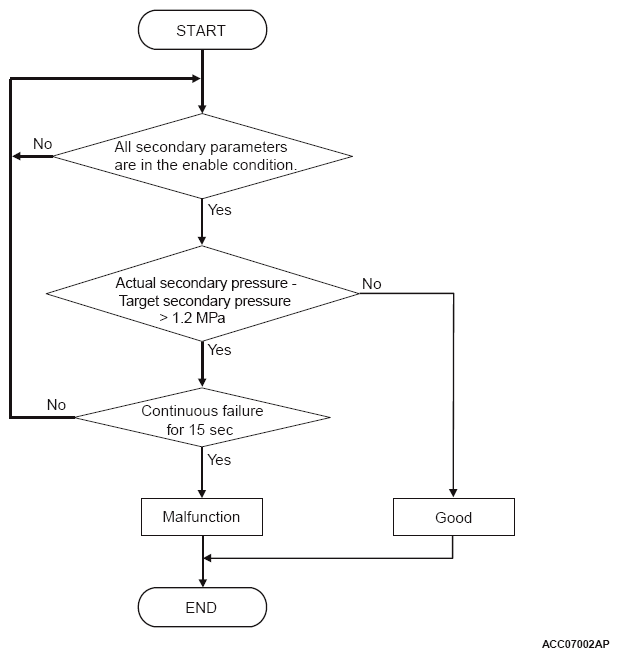

Logic Flow Charts (Monitor Sequence-Output Functional High)
Logic Flow Charts (Monitor Sequence-Output Functional High)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
